FST 4 Port Closure : FSTTB-AXBFA15

A LengthArticle number: 857-01202

Features

  • Maximum 24 fibre splice capacity
  • 3 round ports and 1 oval port
  • Fibre storage basket for loop through applications (Hellapon Small 1 tray version only)
  • Accommodates Hellapon Small trays
  • Maximum 12 splices per tray
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
Colour Black (BK)
Content FST 4 Port Base
A-Length Cover (Dome)
Quick Release Clamp
Sealing ’O’ Ring
Fibre Storage Basket (1 tray version only)
Tray Support Frame
Anchor Fixing Kit
Transportation Tubing
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 - 12
Green Marker 1 – 12
Method of Sealing Cablelok, Heatshrink
Package Quantity per kit
PART DESCRIPTION FSTTB-AXBFA15
Port LM, R
Port count 1, 3
Product Family A Length
Product Group FST 4 Port Closure

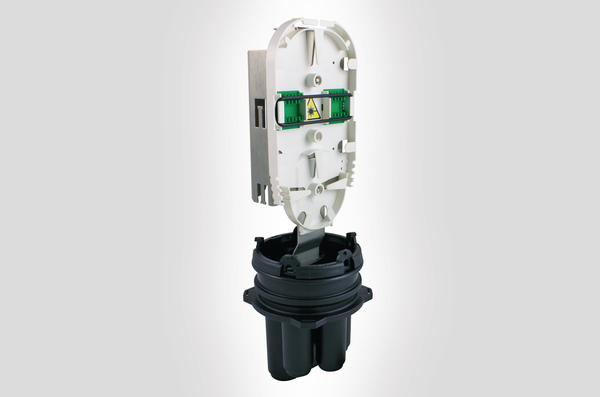

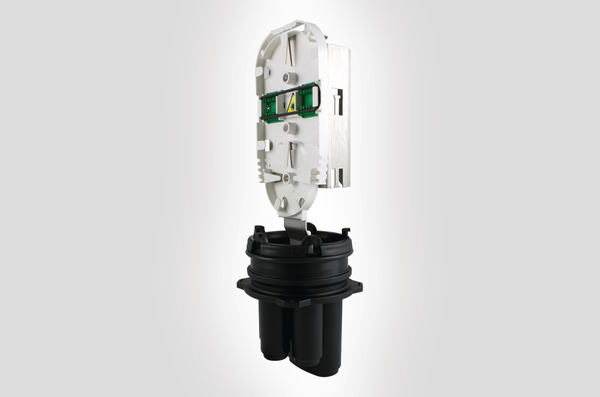

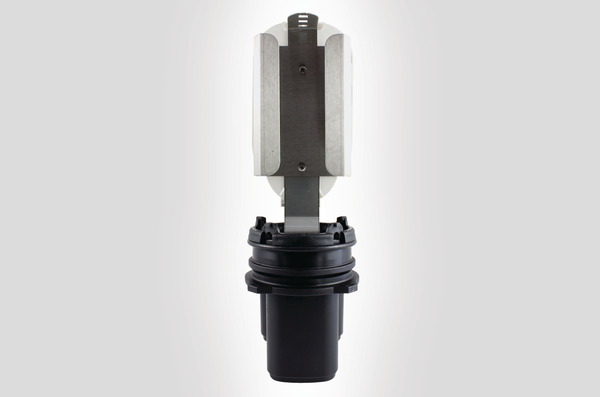

Technical Description The FST 4 Port closure is supplied with a Polypropylene base. The base configuration of 3 round ports and 1 oval port covers a cable diameter range of 4.0 – 16.5mm when using Cablelok mechanical seals and 6.0 – 22.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and can accommodate a maximum of 2 Hellapon Small trays or 1 Hellapon Small tray and basket giving a maximum of 24 fibre splices based on 12 fibres per tray. The fibre basket provides storage space for the storage of fibre loops within the closure. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type of Tray Hellapon Small

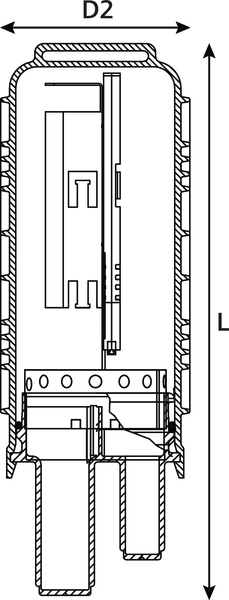

D1 110mm
D2 110mm
Length 310mm
GTIN-13 / EAN 5022660155574
