Bottle Shapes, MIL style : 113-4-GWM250

Helashrink 100 Series, with ribArticle number: 401-13019

Features

  • With circular grooved adaptor for strain relief
  • Combine with complementary adhesives for environmental sealing
  • Suitable for small cable diameters

Certifications & Approvals

Application

Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.

Application Tool H6100, CHG900
Colour Black (BK)
Pack Cont. 1pc.
Package Quantity per bag
PART DESCRIPTION 113-4-GWM250-PO-X-BK
Part No. 1134GWM250
Product Family Helashrink 100 Series, with rib
Product Group Bottle Shapes, MIL style
Variant For plug
Flexibility semi rigid

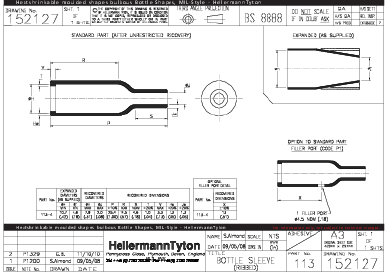

HW ± 20 % 1.3mm
JO ± 10 % 4.6mm
JW ± 20 % 1mm
P ± 10 % 25.4mm
R ± 10 % 14.5mm
S nom. 4.6mm
V ± 10 % 3mm
∅H max. b 7.9mm
∅H min. a 10.7mm
∅J max. b 2mm
∅J min. a 4.6mm
Adhesive WM250
Dielectric Strength 14 kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Material Polyolefin, cross-linked (PO-X)
Material PO-X
Min. Shrink Temperature - °C +135 °C
Operating Temperature - °C -75 °C to +150 °C
Specifications
Tensile Strength 15MPa
GTIN-13 / EAN 5022660414206
