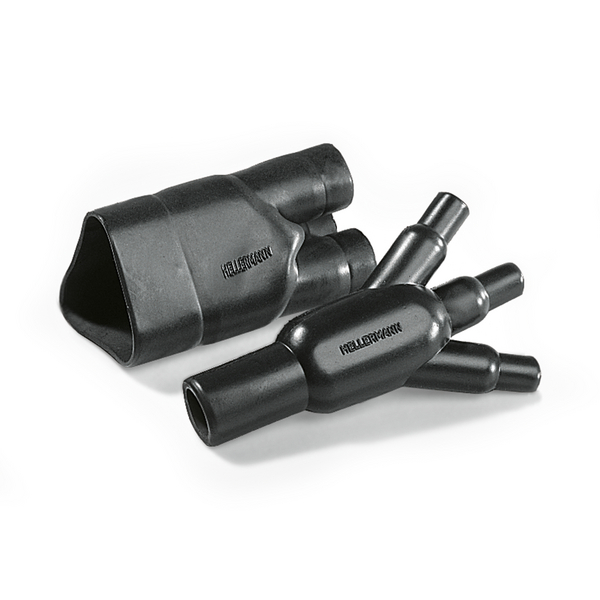

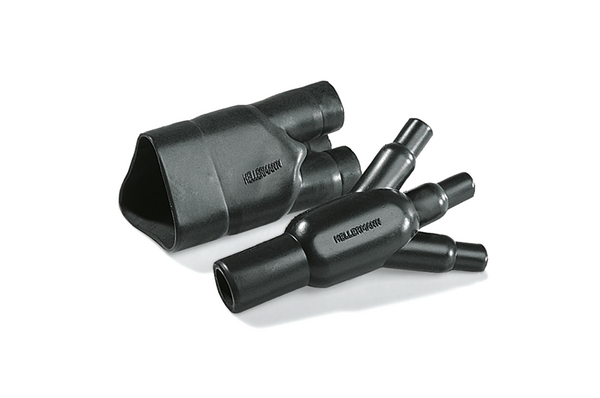

3-Way Outlet Shapes, VG style : 304-1-G

Helashrink 300 SeriesArticle number: 403-04023

Features

  • Cable strain relief and mechanical protection at harness transition points
  • All outlets clearly marked to aid orientation during installation

Certifications & Approvals

Application

Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.

Application Tool H6100, E4500, CHG900
Colour Black (BK)
Pack Cont. 1pc.
Package Quantity per bag
PART DESCRIPTION 304-1-G-PO-X-BK
Part No. 3041G
Product Family Helashrink 300 Series
Product Group 3-Way Outlet Shapes, VG style
Shrink Ratio up to 3:1
Variant For 3-core cables
Flexibility semi rigid

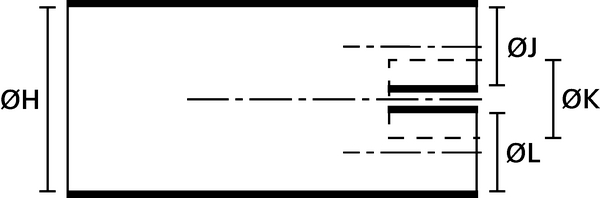

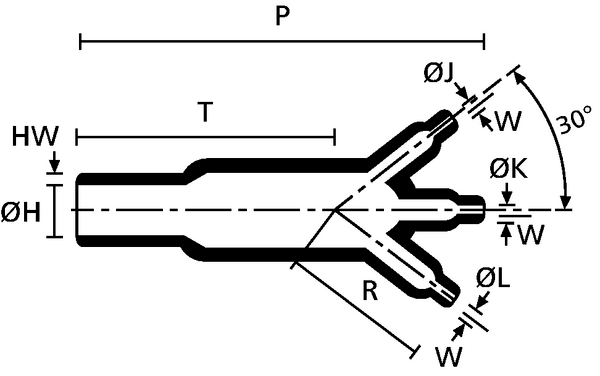

HW ± 20 % 2.5mm
JW ± 30 % 1.5mm
P ± 10 % 93mm
R ± 10 % 50mm
S ± 10 % 50mm
T ± 10 % 43mm
W ± 20 % 1.5mm
∅H max. b 13.5mm
∅H min. a 27mm
∅H/J max. b 13.5mm
∅J max. b 7mm
∅J min. a 13mm
∅J/K/L max. b 7mm
∅J/K/L min. a 13mm
∅K max. b 7mm
∅K min. a 13mm
Dielectric Strength 15 kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Material Polyolefin, cross-linked (PO-X)
Material PO-X
Min. Shrink Temperature - °C +135 °C
Nato number 5970-12-188-2159
Operating Temperature - °C -75 °C to +150 °C
Specifications
GTIN-13 / EAN 5022660451881
