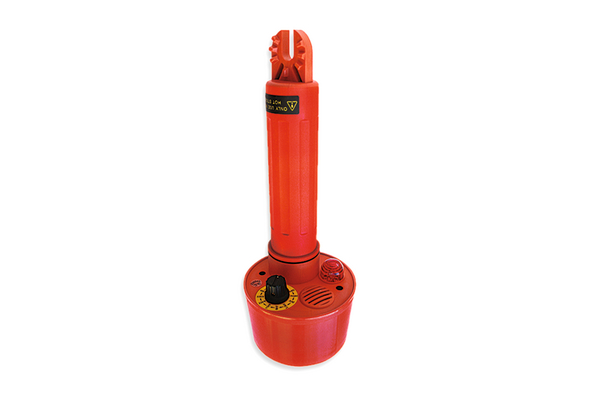

Proximity Detector
Art.-No. 911-00098 | T175HP

Copied

    • Non-contact high voltage detector
    • Wide range of detection: 80 V to 275 kV
    • Ten switch-selectable voltage sensitivity ranges
    • Lightweight
    • Audible and visual indication of live voltage
    • Test option
    • Rose adaptor
    • Check high frequency radiation
    Application The T175HP is designed to detect the presence of high voltage without physical contact. A ten position rotary switch selects the detection range. As the sensor is moved closer to the voltage carrying conductor,
    its sensor head picks up the radiated electric field. Once the range threshold is reached, the buzzer sounds and a bright red warning light warns the operator of live conductors.
    Content Accessories Carry pouch
    Description HV Detector non contact
    PART DESCRIPTION T175HP
    Package Content packed in bag
    Part No. T175HP
    Power Supply 32x 1.5V C Batteries
    Product Family T175HP
    Product Group High Voltage Testers
    Type T175HP
    Height (H) 260mm
    Width (W) 98mm
    Feature
    [AC Voltage (V)]
    Parameter
    [240V/ 3.3KV/ 6.6KV/ 11KV/ 22KV/ 33KV/ 66KV/ 132KV/ 275KV]
    Feature Parameter
    AC Voltage (V)
    		 240V/ 3.3KV/ 6.6KV/ 11KV/ 22KV/ 33KV/ 66KV/ 132KV/ 275KV
    Shelf Life 12 months
    Specifications
    GTIN-13 / EAN 6005242050398
