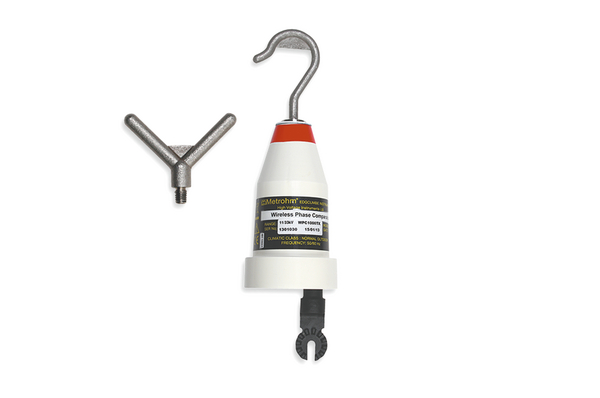

Phase Comparator Wireless
Art.-No. 911-00095
| WPC1000
|
Copied
- Wireless distance up to 200 metres
- Checks high voltage systems and phase comparator
- All weather use (indoor or outdoor)
- White (transmitter)
- Blue (receiver)
Show more
Show less
More products in this product group:
| Application | The high voltage wireless comparator has been designed to meet IEC 61481 specifications. The function of the comparator is to determine whether the conductor is energised or de-energised and to detect and indicate the correct phase relationship between 2 enegised lines at the same nominal voltage and frequency, using a transmitter and receiver. The receiver compares the phase relationship of the line it is connected to with a line to which the transmitter is connected, and indicates if the lines are IN phase or OUT of phase. Each unit must be used with a link stick. |
| Content Accessories | Carry case, Cleaning kit, 2 Rose Connector, Y Contact 1x hook |
| Description | Phase Comparator Wireless |
| PART DESCRIPTION | WPC1000 |
| Package Content packed in | case |
| Part No. | WPC1000 |
| Power Supply | 1x 9V Battery |
| Product Family | WPC-Series: High Voltage Wireless Transmitter Receiver Phasing Comparator |
| Product Group | WPC |
| Type | WPC1000 |
