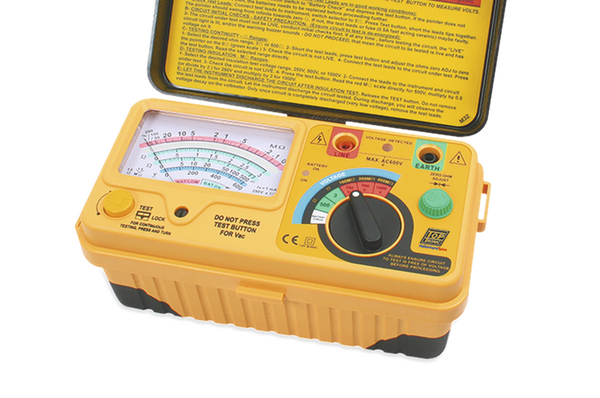

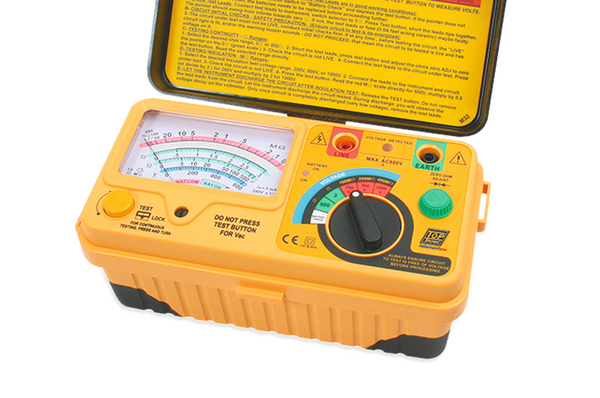

Analogue installation tester
Art.-No. 911-00057
| T1132
Copied
- Safety voltmeter protection
- Live circuit indication
- Auto discharge
- AC voltage measurement
- Zero adjustment knob
More products in this product group:
| Application | testing for COC requirement, testing the integrity of insulation on electrical systems and measuring resistance to ensure safety and compliance. |
| CAT-Rating | CATIII 500V |
| Content Accessories | Test Leads TAL24, Pouch, Shoulder Strap |
| Description | analogue Insulation Continuity |
| PART DESCRIPTION | T1132 |
| Package Content packed in | box |
| Part No. | T1132 |
| Power Supply | 8x 1.5V AA Alkaline Batteries |
| Product Family | T1132 |
| Product Group | Insulation Testers |
| Type | T1132 |
| Height (H) | 92mm |
| Length (L) | 170mm |
| Width (W) | 165mm |
Feature
[AC Voltage (V)]
Parameter
[0 to 600 V]
Feature
[DC Voltage (V)]
Parameter
[250V (0-100 MΩ)
, 500V - (0-200 MΩ), 1000V - (0-400 MΩ)]
, 500V - (0-200 MΩ), 1000V - (0-400 MΩ)]
| Feature | Parameter |
|---|---|
|
AC Voltage (V) |
0 to 600 V |
|
DC Voltage (V) |
250V (0-100 MΩ) 500V - (0-200 MΩ) 1000V - (0-400 MΩ) |
