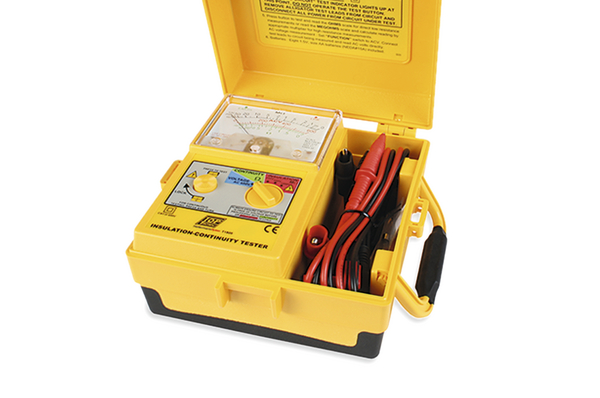

Analogue Insulation Tester
Art.-No. 911-00058
| T1800-BK/YE
|
Copied
- Heavy duty carry case
- Analogue display
- Taut band movement
- Auto discharge
- Colour coded scale
- Live circuit indication
- AC Voltage measurement
Show more
Show less
More products in this product group:
| Application | a analogue insulation and continuity tester to measure insulation resistance, continuity and AC voltage. it is commonly used for safety testing and troubleshooting electrical insulation. |
| CAT-Rating | CATIII 500V |
| Colour | Yellow (YE), Black (BK) |
| Content Accessories | Test leads TAL24 Pouch Shoulder straps |
| Description | Insulation tester analogue |
| PART DESCRIPTION | T1800-BK/YE |
| Package Content packed in | box |
| Part No. | T1800 |
| Power Supply | 8x 1.5V AA Alkaline Batteries |
| Product Family | T1800 |
| Product Group | Insulation Testers |
| Type | T1800 |
| Height (H) | 92mm |
| Length (L) | 170mm |
| Width (W) | 165mm |
Feature
[AC Voltage (V)]
Parameter
[0 to 500 V]
Accuracy
[2.5 % of scale length]
Feature
[DC Voltage (V)]
Parameter
[250V (0-100 MΩ), 500V (0-200 MΩ), 1000V (0-400 MΩ)]
Accuracy
[±5.0 % of indicated value]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Voltage (V) |
0 to 500 V |
2.5 % of scale length |
|
DC Voltage (V) |
250V (0-100 MΩ) 500V (0-200 MΩ) 1000V (0-400 MΩ) |
±5.0 % of indicated value |
