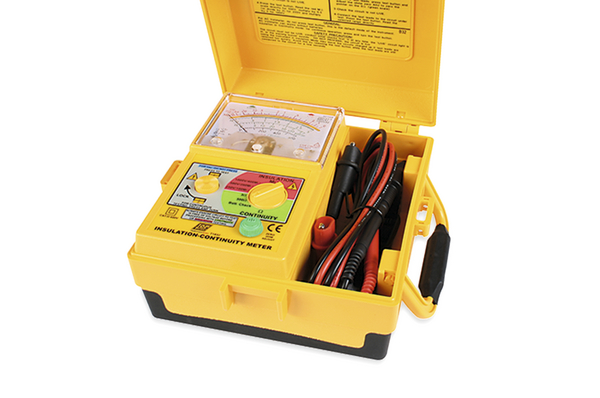

Insulation testers
Art.-No. 911-00059
| T1832
Copied
- Taut band movement
- Live circuit indication
- 200 mA continuity short circuit current
- Auto discharge
- AC voltage measurement
- Rugged construction
- Nulling of test leads
- Continuity buzzer
- Mirror scale
More products in this product group:
| Application | Testing electrical installations, cables and equipment. to verify safety by measuring insulation resistance and continuity. |
| CAT-Rating | CATIII 500V |
| Content Accessories | Test leads TAL24, Shoulder strap |
| Description | Insulation tester analogue 1000V |
| PART DESCRIPTION | T1832 |
| Package Content packed in | box |
| Part No. | T1832 |
| Power Supply | 8x 1.5V AA Alkaline Batteries |
| Product Family | T1832 |
| Product Group | Insulation Testers |
| Type | T1832 |
| AC Voltage (+Accuracy) | 0-600V (±3.0% of scale length) |
| DC Voltage (+Accuracy) | 250V/ 500V/ 1000V (±3.0% of indicated value) |
| Height (H) | 92mm |
| Length (L) | 170mm |
| Width (W) | 165mm |
Feature
[AC Voltage (V)]
Parameter
[0-600 V]
Accuracy
[±3.0% of scale length]
Feature
[DC Voltage (V)]
Parameter
[250V (0-100 MΩ), 500V (0-200 MΩ), 1000V (0-400 MΩ)]
Accuracy
[±3.0 % of indicated value]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Voltage (V) |
0-600 V |
±3.0% of scale length |
|
DC Voltage (V) |
250V (0-100 MΩ) 500V (0-200 MΩ) 1000V (0-400 MΩ) |
±3.0 % of indicated value |
