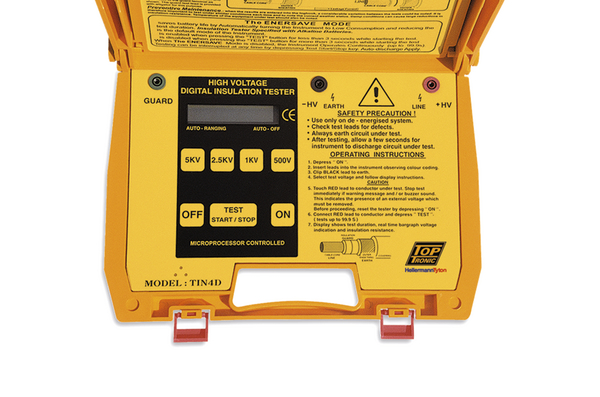

Insulation Tester

Art.-No. 911-00066

| TIN4D

|

Four insulation test voltages (500 V - 5000 V)
Insulation resistance, auto ranging on all ranges
Bargraph indicates test voltage, decay can be observed during discharge
Measures insulation test time
Displays warning of external voltage
Fully protected crow bar
Housed in heavy duty carry case
Insulation time interval test up to 99 sec selectable

More products in this product group:

Insulation Testers

Base Data
Product Dimensions

Base Data

Application	used for measuring insulation resistance in industrial and electrical applications. It is designed to verify the integrity of insulation in high-voltage equipment to prevent failures.
Content Accessories	Test leads (Taltin)
Description	Insulation Tester Digital 5KV
PART DESCRIPTION	TIN4D
Package Content packed in	box
Part No.	TIN4D
Power Supply	8x 1.5V C Alkaline Batteries
Product Family	TIN4D
Product Group	Insulation Testers
Type	TIN4D

Product Dimensions

Height (H)	150mm
Length (L)	330mm
Width (W)	260mm

Feature

[Resistance (Ω)]

Parameter

[500V (0-30GΩ), 1000V (0-60GΩ), 2500V (0-125GΩ), 5000V (0-250GΩ)]

Accuracy

[±3.0 % + 2 Digit]

Feature	Parameter	Accuracy
Resistance (Ω)	500V (0-30GΩ) 1000V (0-60GΩ) 2500V (0-125GΩ) 5000V (0-250GΩ)	±3.0 % + 2 Digit
