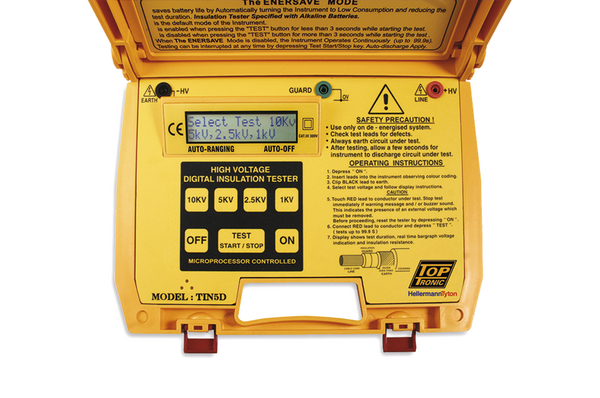

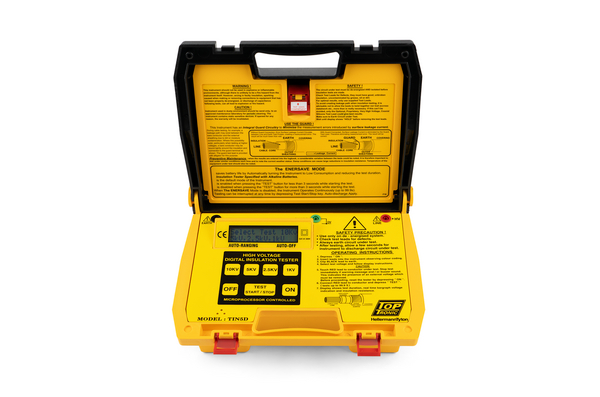

Insulation Testers
Art.-No. 911-00067
| TIN5D
Copied
- Four insulation test voltages (1000 V - 10000 V)
- Insulation resistance, auto ranging on all ranges
- Bargraph indicates test voltage, decay can be observed during discharge
- Measures insulation test time
- Displays warning of external voltage
- Fully protected crow bar
- Housed in heavy duty carry case
- Insulation time interval test up to 99 sec selectable
More products in this product group:
| Application | Designed for measuring high-voltage insulation resistance up to 10kV. it is primarily used in industrial and maintenance applications for testing the integrity of electrical equipment. |
| Content Accessories | Test leads (TALTIN) |
| Description | Insulation Tester Digital 10kV |
| PART DESCRIPTION | TIN5D |
| Package Content packed in | box |
| Part No. | TIN5D |
| Power Supply | 8x 1.5V C Alkaline Batteries |
| Product Family | TIN5D |
| Product Group | Insulation Testers |
| Type | TIN5D |
| AC Voltage (+Accuracy) | 1000V/ 2500V/ 5000V/ 10000V (±3.0% + 2 Digit) |
| DC Voltage (+Accuracy) | 1000V/ 2500V/ 5000V/ 10000V (±3.0% + 2 Digit) |
| Height (H) | 150mm |
| Length (L) | 330mm |
| Resistance (+Accuracy) | 0-60GΩ/ 0-125GΩ/ 0-250GΩ/ 0-500GΩ |
| Width (W) | 260mm |
Feature
[AC Voltage (V)]
Parameter
[1000V/ 2500V/ 5000/ 10000 V]
Accuracy
[±3.0 % + 2 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[1000V/ 2500V/ 5000V/ 10000 V]
Accuracy
[±3.0 % + 2 Digit]
Feature
[Resistance (Ω)]
Parameter
[0-60GΩ/ 0-125GΩ/ 0-250GΩ/ 0-500GΩ]
Accuracy
[±3.0 % + 2 Digit]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Voltage (V) |
1000V/ 2500V/ 5000/ 10000 V |
±3.0 % + 2 Digit(s) |
|
DC Voltage (V) |
1000V/ 2500V/ 5000V/ 10000 V |
±3.0 % + 2 Digit |
|
Resistance (Ω) |
0-60GΩ/ 0-125GΩ/ 0-250GΩ/ 0-500GΩ |
±3.0 % + 2 Digit |
