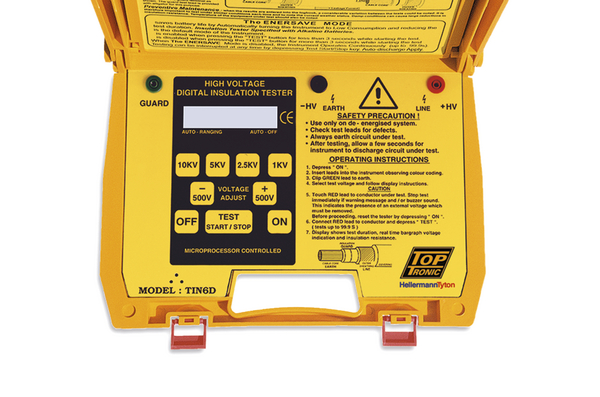

Insulation tester
Art.-No. 911-00070 | TIN6D

Copied

    • 20 Insulation test voltages (500 V - 10 kV)
    • Heavy duty carry case
    • Silicone test leads
    • Anti skid/vibration absorbing enclosure
    • Live circuit warning
    • Auto discharge
    • Insulation time interval test up to 99 sec selectable
    Application Designed for evaluating the insulation resistance of electrical equipment, cables, motors and transformers. It is capable of delivering up to 10kV. making it suitable for high-voltage testing.
    Content Accessories Test leads (TALTIN)
    Description Insulation tester graphic 10kV
    PART DESCRIPTION TIN6D
    Package Content packed in box
    Part No. TIN6D
    Power Supply 8x 1.5V C Alkaline Batteries
    Product Family TIN6D 10
    Product Group Insulation Testers
    Type TIN6D
    DC Voltage (+Accuracy) 500V-10kV (±3.0% + 1Digit)
    Height (H) 150mm
    Length (L) 330mm
    Width (W) 260mm
    Feature
    [DC Voltage (V)]
    Parameter
    [500V - 10 kV]
    Accuracy
    [±3.0 % + 1 Digit(s)]
    Feature Parameter Accuracy
    DC Voltage (V)
    		 500V - 10 kV
    		 ±3.0 % + 1 Digit(s)
    Shelf Life 12 months
    GTIN-13 / EAN 6005242019883
