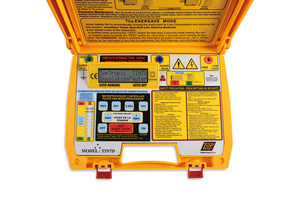

Insulation Tester
Art.-No. 911-00071 | TIN7DOLED-YE

Copied

    • 20 Insulation test voltages (500 V - 10 kV)
    • Heavy duty carry case
    • Polarisation index*
    • Dielectric absorption ratio*
    • Live circuit warning
    • Auto discharge
    • 10 min timer
    • Insulation time interval test up to 99 sec selectable
    Application *Polarisation and dielectric ratio are useful to schedule maintenance. The user can keep record of the PI and DAR results and analyse these over time. Maintenance can be done according to analysis and down time can be scheduled thus saving production time.
    CAT-Rating CATIII 300V
    Colour Yellow (YE)
    Content Accessories Test Leads (TALTIN)
    Description Insulation Tester Digital 10kV
    PART DESCRIPTION TIN7DOLED-YE
    Package Content 1
    Package Content packed in box
    Part No. TIN7DOLED
    Power Supply 8x 1.5V C Alkaline Batteries
    Product Family TIN7D
    Product Group Insulation Testers
    Type TIN7DOLED
    DC Voltage (+Accuracy) 500V, 10kV (±5.0% + 1 Digit)
    Height (H) 150mm
    Length (L) 330mm
    Width (W) 260mm
    Feature
    [DC Voltage (V)]
    Parameter
    [500V, 10 kV]
    Accuracy
    [±5.0 % + 1 Digit]
    Feature Parameter Accuracy
    DC Voltage (V)
    		 500V, 10 kV
    		 ±5.0 % + 1 Digit
    Shelf Life 12 months
    Specifications
    GTIN-13 / EAN 6005242102561
