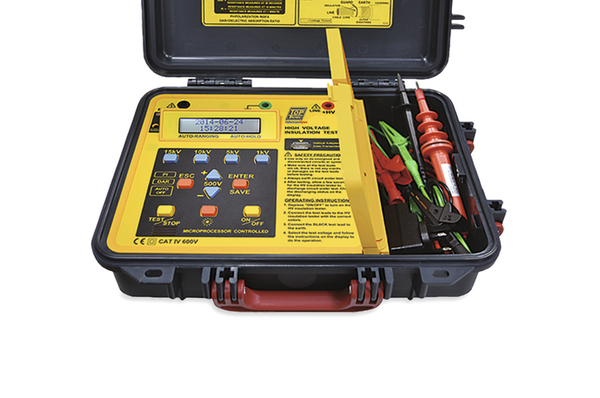

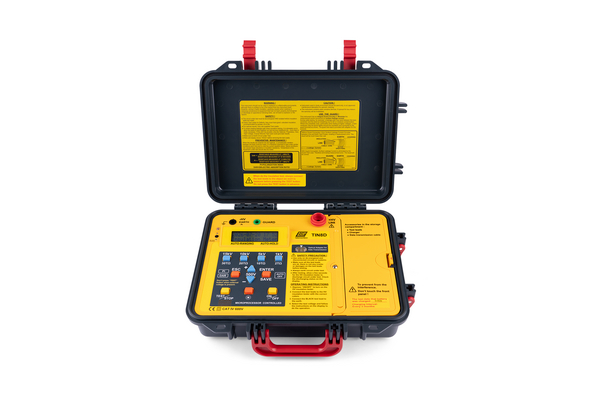

High voltage tester 15kV
Art.-No. 911-00072
| TIN8D
Copied
- Insulation test voltage up to 15 kV
- Test insulation resistance up to 30 TΩ (30000 GΩ)
- Short circuit current up to 5 mA
- Auto hold function to freeze the reading
- Overload protection
- 30 insulation test voltages
- Adjustment for testing time (duration) : 1~30 minutes
- Auto off
- Software included
- USB to RS-232 data transmission.
- 200 Measurement results can be saved and recalled on the display
More products in this product group:
| Application | To measure insulation resistance, particularly for high-voltage equipment. Testing insulation resistance in motors, generators, transformers, and high-pressure switches. |
| CAT-Rating | CATIV 600V |
| Content Accessories | Test leads with crocodile clips (TIN8DTLKT), test probe (TAL58), data transmission cable and software on USB (TIN8CHARGE) |
| Description | Insulation Tester Digital 15kV |
| Digits in display | 3 |
| PART DESCRIPTION | TIN8D |
| Package Content packed in | box |
| Part No. | TIN8D |
| Power Supply | 14.8V Lithium Ion Rechargeable Battery |
| Product Family | TIN8D |
| Product Group | Insulation Testers |
| Type | TIN8D |
| AC Voltage (+Accuracy) | 30-600V (±2.0% + 3 Digit) |
| DC Voltage (+Accuracy) | 30-600V (±2.0% + 3 Digit) |
| Height (H) | 127mm |
| Length (L) | 430mm |
| Width (W) | 324mm |
Feature
[AC Voltage (V)]
Parameter
[30-600 V]
Accuracy
[±2.0 % + 3 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[500 - 15 kV]
Accuracy
[±5.0% + 5 Digit]
Feature
[DC Voltage (V)]
Parameter
[30-600 V]
Accuracy
[±2.0 % + 3 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[3000 Counts]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Voltage (V) |
30-600 V |
±2.0 % + 3 Digit(s) |
|
DC Voltage (V) |
500 - 15 kV |
±5.0% + 5 Digit |
|
DC Voltage (V) |
30-600 V |
±2.0 % + 3 Digit(s) |
|
Display |
3 Digit(s) |
3000 Counts |
