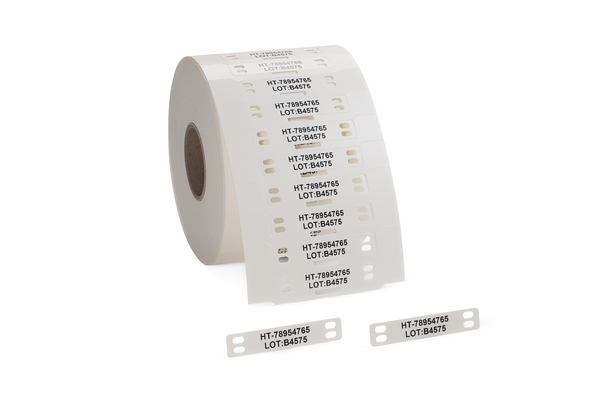

Identification tags for cable bundle in ladder style TAGPU 60x12 mm white 1000 pcs./reel
Art.-No. 556-80515 | TAGPU12X60-4-PUR-WH Details

  • UV-stabilised
  • For larger cables and wires, bundles
  • Robust and flexible material
  • Thermal transfer or laser beam printable
  • Available in various colours
  • Halogen Free
  • Good mechanical strength and highly flexible
  • Delivery in convenient storage boxes
Show more

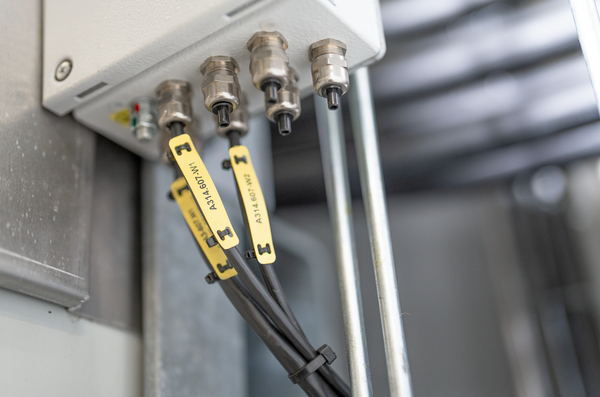

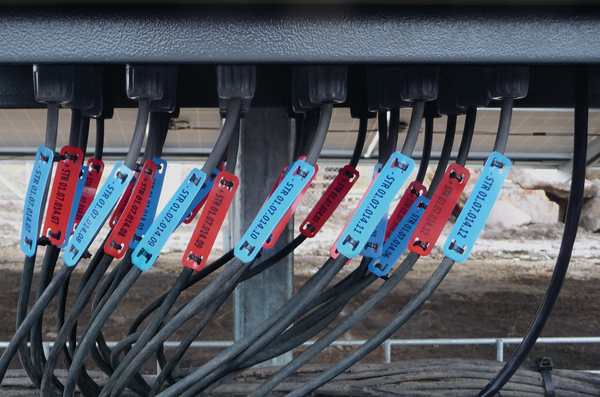

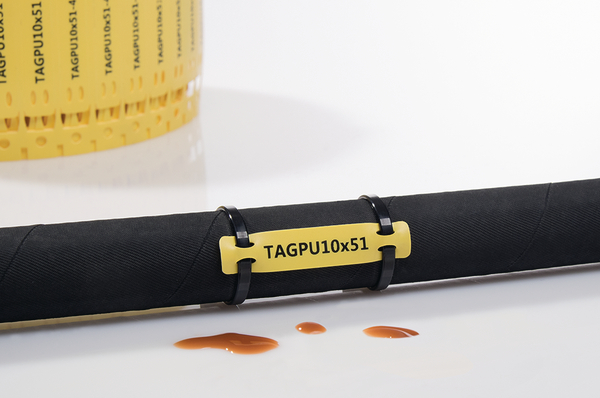

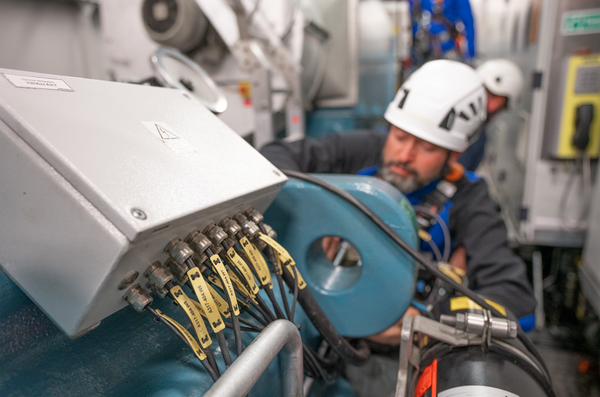

Application TAGPU is a specially designed cable marker for identifying larger wire and cable bundles, where a permanently legible and UV resistant marking is required. The cable markers consist of a robust and flexible polyurethane material and are especially suited for harsh environments. They are supplied pre-cut and have been formatted into a convenient "ladder" system. The markers are applied to cable and harness assemblies with cable ties, and are also suitable for retrofit purposes. The material has been conditioned for printing on both thermal transfer and laser beam printers. Simply print and press out the required TAGPU and apply with cable ties. Print with HellermannTyton's premium range of thermal printers and ribbons or a laser beam marking device.
Application Tool TT431, TT4030
Colour White (WH)
Density 1.27 g/cm³, 23 °C (DIN EN ISO 2811-2)
Material Polyurethane (PUR)
Pack Cont. 1000pcs.
Package Content packed in box
PART DESCRIPTION TAGPU12X60-4-PUR-WH
Printable Yes
Product Family TAGPU – UV-stabilised Tiptags
Product Group Identification tags for cable bundle, "Ladder Style", thermal transfer
Variant Roller form
With inner glue (Yes/No) No
H printable 12.0mm
Length (L) 60.0mm
Print Method thermal transfer print
Print Method (Alternative) laser beam print
Strap Width max. (G) 4.6mm
Width (W) 11.6mm
Width of Liner (WL) 90.0mm
Width printable 40.0mm
Elongation at break 400%
Elongation at break test method DIN 53504
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0 (3 mm)
Halogen-free Yes
Hazardous Goods No
Operating Temperature -25 °C to +105 °C
Oxygen index 24%
Oxygen index test method ISO 4589
Recommended Ribbon Type TTRC+, TT287
Reel Variant ladder-style
Shelf Life 5 years
Specifications
Specifications MIL-STD-202G Method 215K, SAE - AS81531
Tensile Strength 30MPa
Test Method Tensile Strength DIN 53504
UV-Stabilised Yes
GTIN-13 / EAN 4031026574745
Markers per row 1
Packaging 1 - Height (m) 0.091m
Packaging 1 - Length (m) 0.123m
Packaging 1 - Qty 1000
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.00138
Packaging 1 - Weight (kg) 1.27kg
Packaging 1 - Width (m) 0.123m
Packaging 2 - Height (m) 0.098m
Packaging 2 - Length (m) 0.184m
Packaging 2 - Qty 1000
Packaging 2 - Type carton
Packaging 2 - Volume (m³) 0.0032
Packaging 2 - Weight (kg) 1.388kg
Packaging 2 - Width (m) 0.178m
UNSPSC Key 39131504
