High Resolution loop
Art.-No. 911-00075 | TIMP57

Test up to 400kA
4 wire high resolution line impedance measurement
phase to phase, phase to neutral phase to protection conductor impedance measurement
phase to phase
phase to neural
phase to protection conductor psc current calcution

More products in this product group:

Application	The accessory TIMP57 has been conceived for technical departments and measuring technicians in order to measure in combination with instruments fault loop impedance / line impedance and to calculate the assumed short-circuit current, which is essential for determining the dimension of the protections provided in common industrial electric systems. The high generated test current (max. 200 A) allows carrying out high-resolution measurements (0.1 mΩ) and therefore obtaining correct and precise results, even near MT/BT transformers. TIMP57 consists of a practical and resistant suitcase structure, it has no display and it can be interfaced by RS232 serial connection to the below mentioned instruments (called Master) in order to obtain the readings. The 4-terminal measurement allows the effect of the resistance of the supplied cables, therefore no preliminary calibrations are required.
CAT-Rating	CATIII 240V, CATIII 415V

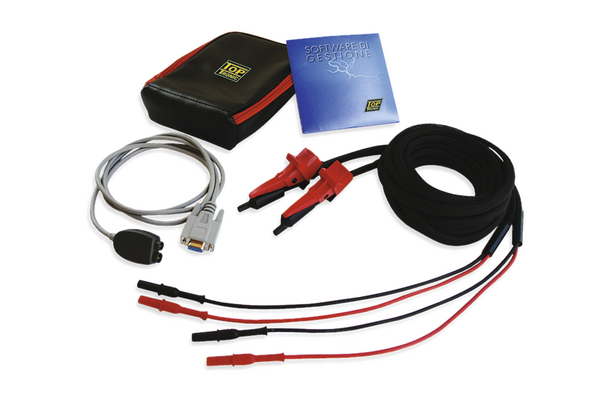

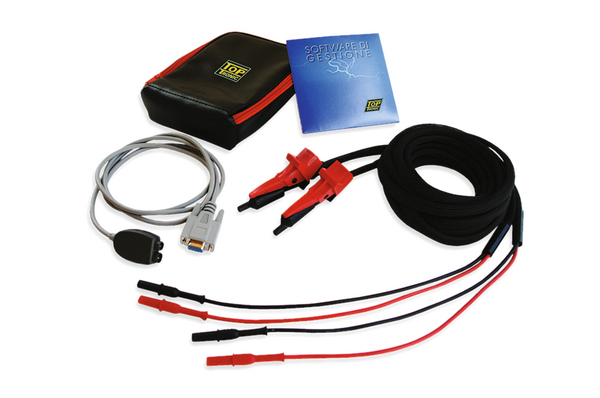

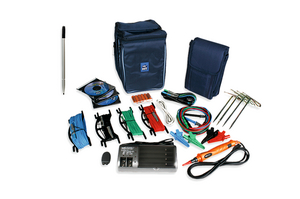

Content Accessories	Test Cables 3m length with crocodile clips, RS-232 serial cable Carrying bag
Description	Line loop adaptor 200A
PART DESCRIPTION	TIMP57
Package Content packed in	box
Part No.	TIMP57
Power Supply	8x 1.5V Alkaline batteries
Product Family	TIMP57
Product Group	PSC Loop Testers
Type	TIMP57
