Carrier marking system, laser printer : HCR12

Carrier for label 13.00 mm transparent / reel=25 mArticle number: 525-13003

Features

  • Versatile transparent carriers for HFX labels used for temporary or permanent marking
  • Fixed in place using T18 series cable ties, screws or rivets (carrier HC06, no rivet hole)
  • Protects inserted HFX label against damp, dirt, damage and UV radiation
  • Helafix HC supplied as cut lengths in bags, pre-cut and pre-punched rivet hole (carrier HC06 has no punched hole)

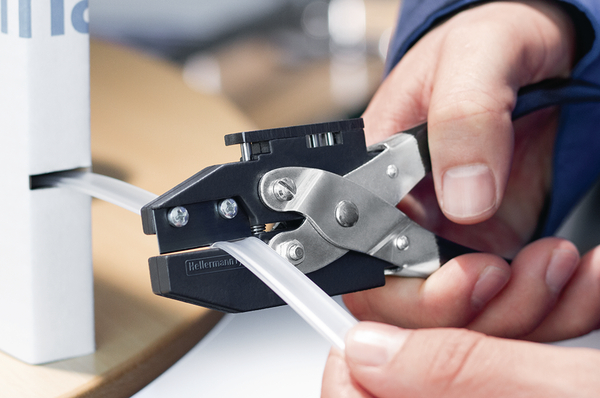

  • Helafix HCR supplied in continuous tube format and can be cut to size with HCT tool
  • Helafix HFX labels designed to fit into HC and HCR carriers

Certifications & Approvals

Application

Marking of cable looms, cables, pipes, transport systems, valves, sensors, for inventory marking on machines or other parts.

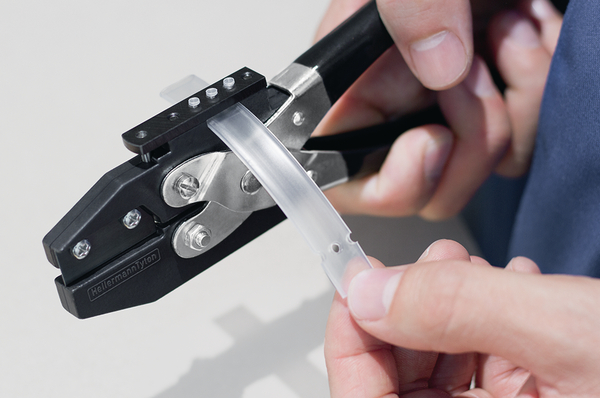

Application Tool HCT2
Colour Transparent (CL)
Fixation Method Plug in
Pack Cont. 25m
Package Quantity per reel
PART DESCRIPTION HCR12-PEUV-CL
Part No. HCR12
Product Family Helafix HCR Carriers continuous
Product Group Carrier marking system, laser printer
Recommended Labels HFX12
Self adhesive (Yes/No) No
Variant Other
With label space No
For Carrier Width 12.00 mm
Height (H) 13.00mm
Strap Width max. (G) 2.50mm
Chem. Material Properties Resistance to UV light, water and a variety of solvents.
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous good No
Material Polyethylene, UV-resistant (PEUV)
Material PEUV
Operating Temperature - °C -60 °C to +65 °C
Specifications
GTIN-13 / EAN 4031026165400
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 25
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.0045
Packaging 1 - Weight (kg) 0.652kg
Packaging 1 - Width (m) 0.3m
Reel Length 25.0m
