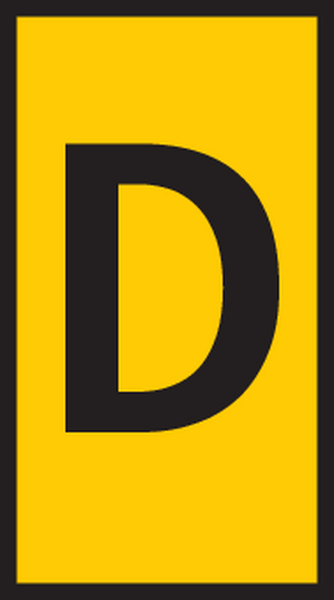

Clip On Cable Marker 4.3-5.3mm yellow Imprint D
Art.-No. 561-03044 | WIC3-D-PA66-YE Details

  • Fast and easy to use pre-printed nylon snap-on marker
  • Ideal where termination is completed or for maintenance and repair
  • Markers lock together to give perfect text alignment
  • Vibration resistant markers, WIC markers lock onto wire and cable tightly
  • WIC tool holds 20 WIC markers in all four sizes
  • Gripping system locks markers onto wire and resists rotation
  • Popular 2 digit markings such as L1, L2, L3, PE are available in yellow or colour code
  • Dispenser colour denotes marker size: WIC0 (green), WIC1 (red), WIC2 (blue), WIC3 (yellow)
  • Two accessories available to identify cables from 6 mm² up to 25 mm² (WICA-AC10-25) and up to 95 mm² (WICA-ACT-BK)
Show more
Application The WIC range of pre-printed cable markers easily snap onto cables and wires. The WIC tool ensures an easy application of the markers – simply insert the markers into the tool, slide down and press the markers onto the wire while twisting. Markers for fibre cables should be applied by hand. All markers come with a locking mechanism to ensure perfect text alignment. The two WICA accessories are ideal for marking cables of larger diameters (6mm-95mm2).
Application Tool WIC Tool
Colour Yellow (YE)
Fixation Method snap-on
Marking Text D
Material Polyamide 6.6 (PA66)
Pack Cont. 500pcs.
Package Content packed in box
PART DESCRIPTION WIC3-D-PA66-YE
Part No. W3MDYL
Product Family WIC, snap on
Product Group Pre-printed cable markers
Variant Other
With label space No
Bundle Diameter max (metric) 5.30mm
Bundle ∅ min. 4.30mm
Height (H) 9.60mm
Length (L) 3.0mm
Outside ∅ max. .208"
Outside ∅ min. .170"
Print Method hotfoil print
Width (W) 8.00mm
Wire Size Range (mm²) 4.00-6.00mm²
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Pre-Printed Yes
Specifications
Specifications EN 60062, IEC 304
GTIN-13 / EAN 4031026214306
Packaging 1 - Height (m) 0.053m
Packaging 1 - Length (m) 0.185m
Packaging 1 - Qty 500
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00061
Packaging 1 - Weight (kg) 0.356kg
Packaging 1 - Width (m) 0.062m
Packaging 2 - Height (m) 0.2m
Packaging 2 - Length (m) 0.4m
Packaging 2 - Qty 15000
Packaging 2 - Type box
Packaging 2 - Volume (m³) 0.024
Packaging 2 - Weight (kg) 11.01kg
Packaging 2 - Width (m) 0.3m
