Accessory for WIC1, WIC2, WIC-Series, black, 100pcs. (WICA-ACT-BK)
Art.-No. 561-06000 | WICA-ACT-BK-PA66HIRHS-BK |

Copied
Application The WIC range includes three accessories designed to make cable identification quicker, cleaner, and more reliable than ever – even with high-diameter cables.

WIC Tool: A universal application tool for inserting WIC markers with speed and precision. Simply load, slide, and twist.
WICA-AC 10-25 for Snap-On Support: Designed for cables from 10 to 25 mm², this accessory securely clips onto the cable and holds up to 8 markers for clear and organized identification.

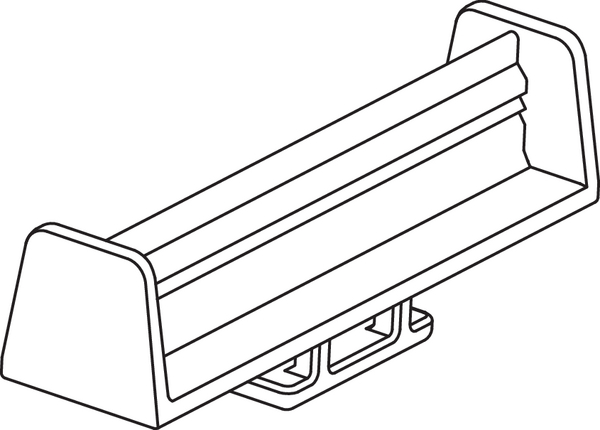

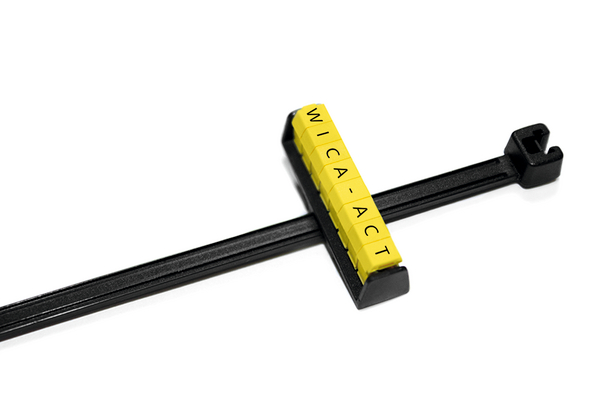

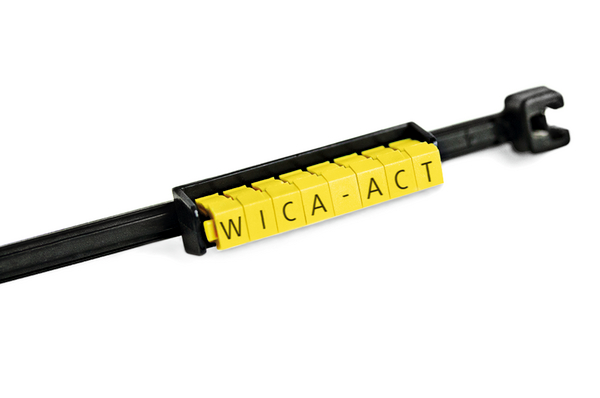

WICA-ACT for Tie-On Application: Ideal for larger cables, this version is secured with a cable tie (included) to provide maximum flexibility and stability.
Colour Black (BK)
Description WIC adapter set for fixing with cable ties
Fixation Method snap-on
Marker tiles per carrier 8
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION WICA-ACT-BK-PA66HIRHS-BK
Pack Cont. 100pcs.
Package Content packed in set
Product Family WIC, snap on
Product Group Pre-printed cable markers
Type WICA-ACT-BK
Variant Other
With label space No
Bundle ⌀ max. 38.0mm
Bundle ⌀ min. 3.0mm

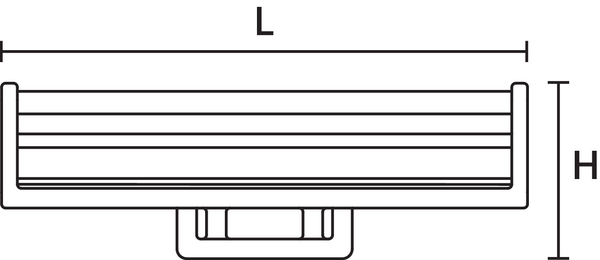

Height (H) 8.9mm
Length (L) 26.7mm
Print Method inkjet print
Width (W) 7mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
Specifications EN 60062, IEC 304
GTIN-13 / EAN 4031026542805
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.305m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0010675m³
Packaging 1 - Weight (kg) 0.130198kg
Packaging 1 - Width (m) 0.14m
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.3m
Packaging 3 - Qty 10
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.012m³
Packaging 3 - Weight (kg) 1.54197kg
Packaging 3 - Width (m) 0.2m

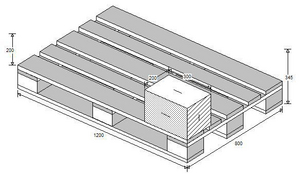

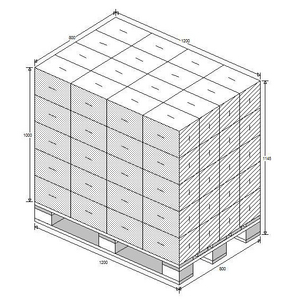

Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 800
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098m³
Packaging 4 - Weight (kg) 144.358kg
Packaging 4 - Width (m) 0.8m
