20/05/2025

Pre-Insulated Terminals
Art.-No. 911-00629 | 2FB9-BU |

Copied

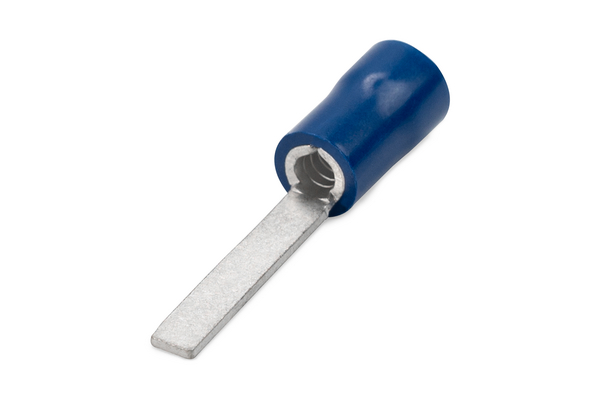

Flat blade single grip terminal, 2FB series.

    Colour Blue (BU)
    Description TERMINAL P-I FLAT BLADE BLUE 9x2.8mm
    PART DESCRIPTION 2FB9-BU
    Pack Cont. 100pcs.
    Part No. 2FB9
    Product Family Insulated Blade Terminals
    Product Group Pre-Insulated Terminals
    Type 2FB9
    Length (L) 18.8mm
    Length (L2) 9.0mm
    Max Current 27A
    Max Voltage 600V
    Width (W) 2.8mm
    Wire Size Range (mm²) 1.17-3.24mm²
    GTIN-13 / EAN 6005242012877
    Art.-No.: 911-00629 Details Contact
