Pre-Insulated Terminals
Art.-No. 911-00543 | PRPK1-RD |

Copied

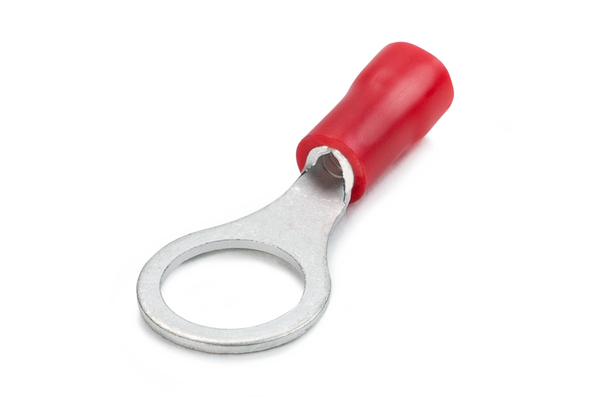

Ring single grip terminal, 1R series.
Ring double grip terminal, RD1 series.

    Colour Red (RD)
    Description TERMINAL PRE-PACK 1R6 10
    PART DESCRIPTION PRPK1-RD
    Pack Cont. 10pcs.
    Part No. PRPK1
    Product Family Insulated Ring Terminals
    Product Group Pre-Insulated Terminals
    Type PRPK1
    Length (L) 26.8mm
    Length (L2) 11.0mm
    Max Current 19A
    Max Voltage 600V
    Stud ⌀ 6.4 mm
    Width (W) 11.6mm
    Wire Size Range (mm²) 0.34-1.57mm²
    GTIN-13 / EAN 6005242985034
