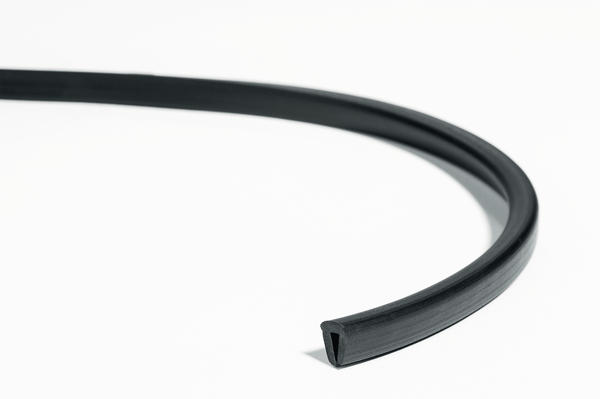

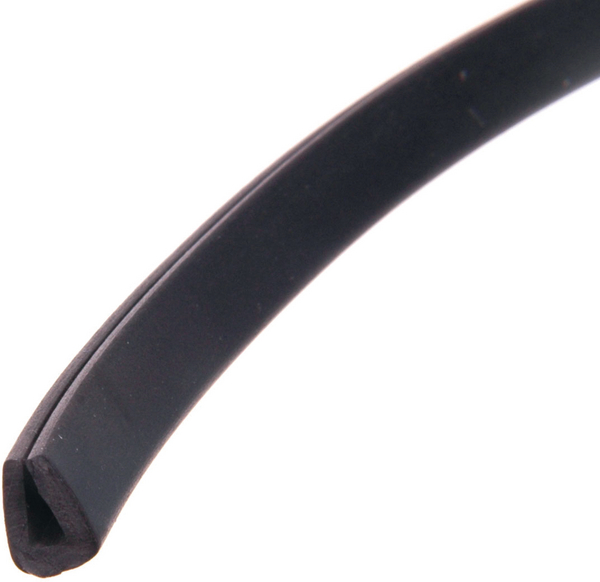

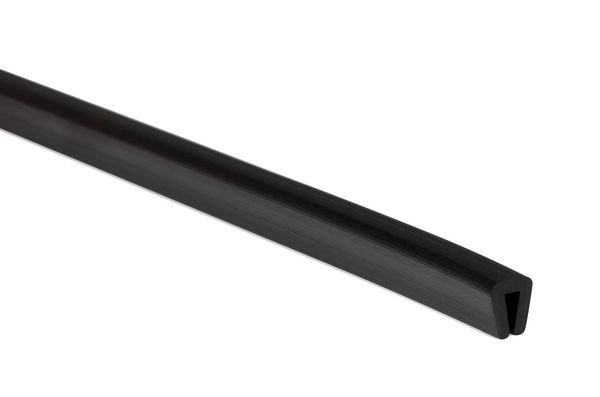

Edge protection SM1
EdgeGuard , Article number: 800-00004
Features
- Made of flexible PVC compound
- Easy to apply
- Protects cables from chafing on bulkheads
Certifications & Approvals
Application
EdgeGuard is used to cover panel edging to prevent chafing and provide an attractive finish.
EdgeGuard is suitable for following markets and industries
-
![Electronics Industry]()
Electronics Industry
More products in this product group
Edge protection >| Colour | Black (BK) |
| GLOBAL PART DESCRIPTION | SM1-PVC-BK |
| Pack Cont. | 75m |
| Package Quantity per | reel |
| Part No. | SM1BK |
| Product Family | EdgeGuard |
| Product Group | Edge protection |
|
|
|
| for Panel Thickness min - max | 1 - 2 mm |

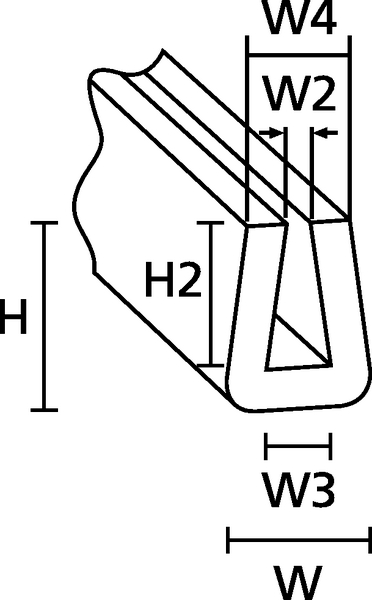

| Height (H) | 6.3mm |
| Height (H2) | 4.9mm |
| Length (L) | 75m |
| Panel Thickness max. (imperial) | 0.079" |
| Panel Thickness min. (imperial) | 0.039" |
| Width (W) | 5.0mm |
| Width (W2) | 1.0mm |
| Width (W2) | 0.039" |
| Width (W3) | 1.8mm |
| Width (W3) | 0.07" |
| Width (W4) | 4.2mm |
| Width (W4) | 0.165" |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogenfree | No |
| Hazardous good | No |
| Material | Polyvinylchloride (PVC) |
| Material | PVC |
| Operating Temperature - °C | -65 °C to +105 °C, intermittent +135 °C |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| EAN / GTIN | 4031026272191 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 75 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0045m³ |
| Packaging 1 - Weight (kg) | 2.4kg |
| Packaging 1 - Width (m) | 0.3m |
| Reel Length | 75m |
| Reel Length | 246.1ft |
| Weight | 2.4kg |
| UNSPSC Key | 39131603 |
