WESHLBLDC-443/281-OG : WESHLBLDC
Art.-No. 596-00496 | WESHLBLDC-443/281-OG Details

Application For use on breaker boxes and DC Disconnect switches
Colour Orange (OG)
Colour of Print Black (BK)
Material Type 443/281, UV stable flexible white vinyl with clear polyester laminate (443/281)
Pack Cont. 50pcs.
Package Content packed in roll
PART DESCRIPTION WESHLBLDC-443/281-OG
Part No. 59600496

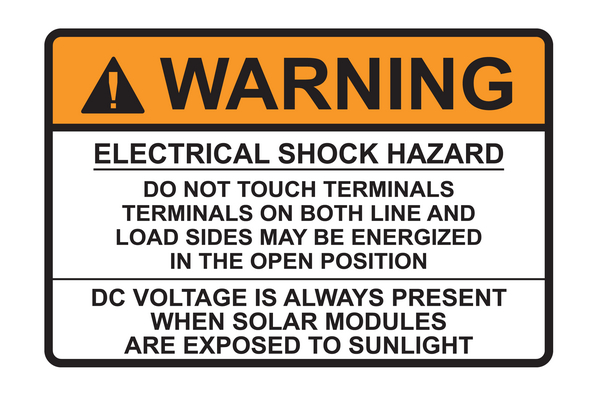

Technical Description 3.75" X 2.5" Black text on an Orange/White background that reads as: "WARNING - ELECTRICAL SHOCK HAZARD. DO NOT TOUCH TERMINALS. TERMINALS ON BOTH LINE AND LOAD SIDE MAY BE ENERGIZED IN THE OPEN POSITION. DC VOLTAGE IS ALWAYS PRESENT WHEN SOLAR MODULES ARE EXPOSED TO SUNLIGHT" - 50 per roll
Height (H) 63.5mm
Length (L) 63.5mm
Thickness (T) 64.0µm
Width (W) 95.25mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +79 °C
CE Certification No
CSA Certified No
Curing Temperature +10 °C
Halogen-free No
Operating Temperature -40 °C to +79 °C
Specifications
Specifications NEC2014, UL 969
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number MH11410
UV-Stabilised Yes
GTIN-13 / EAN 4031026468242
Labels per Column 1
Labels per Row 1
Packaging 1 - Weight (kg) 0.521kg
UNSPSC Key 55121606
