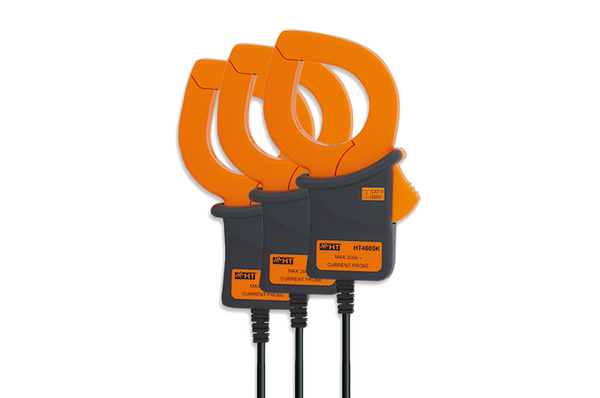

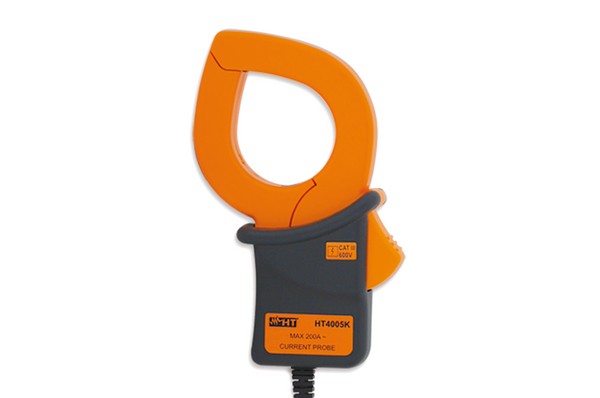

Solar clamp meter
Art.-No. 911-00201
| HT4005K
Copied
- Jaw size 40mm
- Measuring range up to 200A AC
More products in this product group:
| Application | The HT4005K is a rigid clamp style AC current transducer designed for precise measurement of alternating current up to 200A. it is primarily used as an accessory for power quality analyzers, network analyzers and photovoltaic testers. The HT4005K is often with devices featuring a hypertac input connector. It operates as a current transformer and does not require an external power supply to function as it is powered by the circuit it is measuring with compatible HT instruments power quality analyzers. |
| CAT-Rating | CATIII 600V |
| Description | Solar Transducer Clamp Meter |
| PART DESCRIPTION | HT4005K |
| Package Content packed in | EA |
| Part No. | HT4005K |
| Product Family | HT4005K |
| Product Group | Photovoltaic Systems |
| Type | HT4005K |
| AC Current (+Accuracy) | 0.1A / 200A |
| Frequency (+Accuracy) | 40Hz / 3kHz |
| Height (H) | 36mm |
| Length (L) | 128mm |
| Width (W) | 81mm |
Feature
[AC Voltage (V)]
Parameter
[0.1A / 200 A]
Accuracy
[±0.5%rdg + 20MA / 45/65Hz
± 2%rdg + 40mA / 40Hz / 45Hz/ 65 Hz / 3kHz]
± 2%rdg + 40mA / 40Hz / 45Hz/ 65 Hz / 3kHz]
Feature
[Frequency (Hz)]
Parameter
[40 Hz / 3 kHz]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Voltage (V) |
0.1A / 200 A |
±0.5%rdg + 20MA / 45/65Hz ± 2%rdg + 40mA / 40Hz / 45Hz/ 65 Hz / 3kHz |
|
Frequency (Hz) |
40 Hz / 3 kHz |
