Photovoltaic instruments

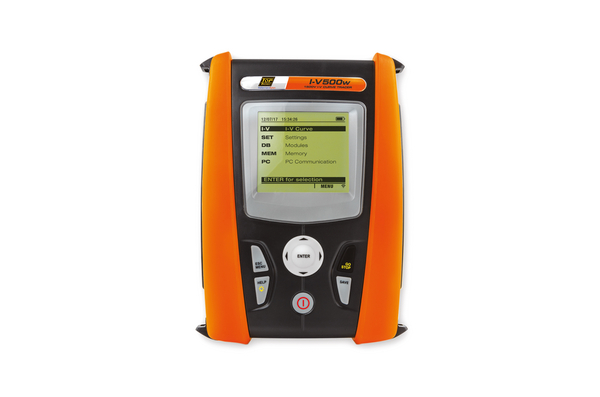

Art.-No. 911-01913 | IV500-BK/OG

Copied
IV500_ZA_01

    • Measurement of open-circuit voltage and of short-circuit Vos/Isc
    • Measurement of PV module/string output voltage up to 1500V DC
    • Measurement of PV module/string output current up to 10A DC
    • Direct comparison with reference conditions (STC - 1000Wm2 25°C)
    • Internal memory for data saving
    Application For measuring the I-V curve, efficiency, and safety of photovoltaic strings/modules. it features app connectivity via HT Analysis.
    Colour Orange (OG), Black (BK)
    Content Accessories 4 cables and 4 crocodile clips 2 Adapters with connectors MC3
    2 Adapters with Connectors MC4
    Sensor for irradiation measurement
    Mechanical inclinometer
    Windows software & optical/USB C2006 cable
    Description Device for maintenance and troubleshooting
    PART DESCRIPTION IV500-BK/OG
    Package Content packed in box
    Part No. IV500
    Power Supply 6 x 1.5V AA Alkaline Batteries
    Product Family IV500
    Product Group Photovoltaic Instruments
    Type IV500
    Height (H) 75mm
    Feature
    [DC Current (A)]
    Parameter
    [15 A]
    Accuracy
    [1 Digit(s)]
    Feature
    [DC Voltage (V)]
    Parameter
    [1500 V]
    Accuracy
    [2 Digit(s)]
    Feature Parameter Accuracy
    DC Current (A)
    		 15 A
    		 1 Digit(s)
    DC Voltage (V)
    		 1500 V
    		 2 Digit(s)
    IP-Rating IP40
    Shelf Life 12 months
    Minimum Order Quantity 1
