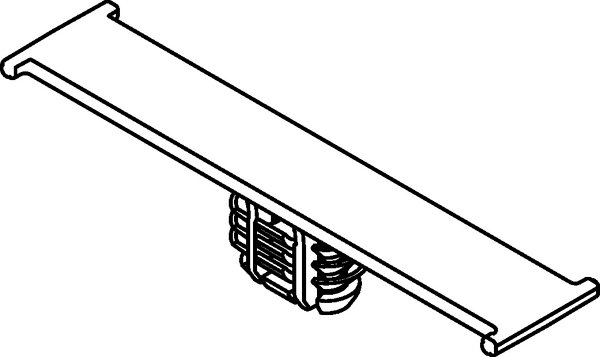

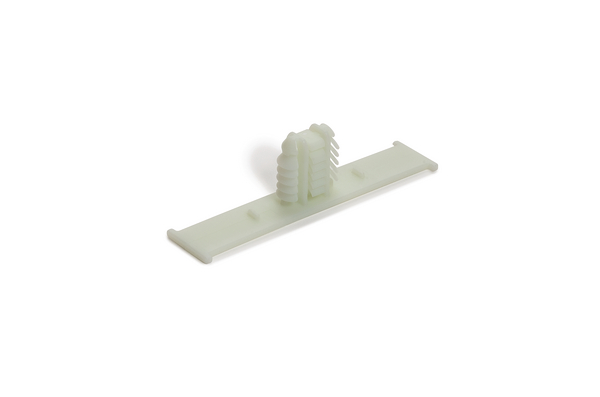

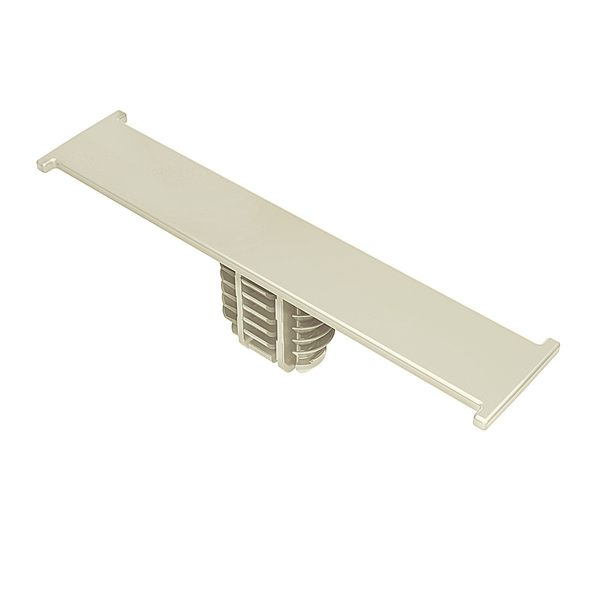

Bundling Clips with Fir Tree : BCFTOVAL

Oval holesArticle number: 151-01239

Features

  • Especially for banding of cables and cable harnesses
  • Fastened onto bundling bar with cable ties or adhesive tape
  • Various base geometries for wide variety of metal gauges and bore diameters

Certifications & Approvals

Application

Originally designed for the automotive industry, these clips offer simple and easy methods of securing cables, hoses or pipes. These parts are used in the automotive industry for assembly of cable harnesses.

Colour Natural (NA)
Fixation Method Fir Tree for oval holes
Fixing Hole Shape Oval
Pack Cont. 8000pcs.
Package Quantity per carton
PART DESCRIPTION BCFTOVAL-PA66HIRHS-NA
Part No. BCFTOVAL
Product Family Oval holes
Product Group Bundling Clips with Fir Tree
Bundling Bar Length 58.0mm
Bundling Bar Length 2.28"
for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 6 mm
Height (H) 15.45mm
Height (H2) 13.95mm
Length (L) 58.0mm
Panel Thickness 0.02 - 0.24"
Panel Thickness max. 0.6 - 6.0mm
Panel Thickness max. (imperial) 0.24"
Panel Thickness min. (imperial) 0.02"
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Hazardous good No
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Material PA66HIRHS
Operating Temperature - °C -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
GTIN-13 / EAN 4031026477794
Packaging 1 - Qty 8000
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 11.224001kg
Packaging 2 - Type carton
Packaging 3 - Height (m) 0.375m
Packaging 3 - Length (m) 0.585m
Packaging 3 - Qty 8000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0625
Packaging 3 - Weight (kg) 12.11kg
Packaging 3 - Width (m) 0.285m
Packaging 4 - Height (m) 1.269m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.218
Packaging 4 - Weight (kg) 164.448kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
