Cable Ties for single hole application (Chassis Tie) : DE863220

DE863220 with square head, 135 N loop tensile strengthArticle number: 132-00200

Features

  • Both sides serrated cable tie
  • BHT-Series with round head for larger bearing area
  • BHT375 for centred position

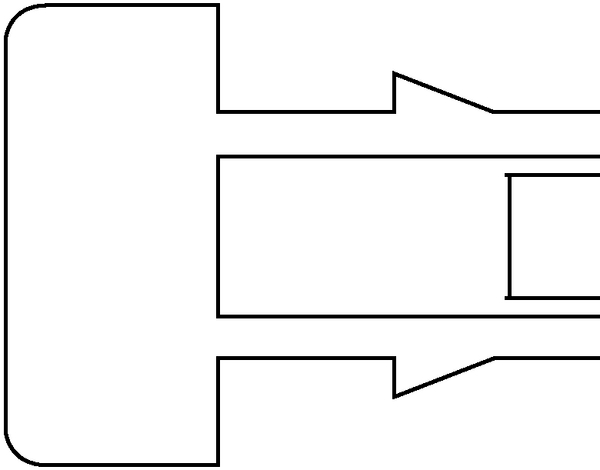

  • CT- and DE-Series with small squared head for restricted space areas
  • Tensioning with application tool

Certifications & Approvals

Application

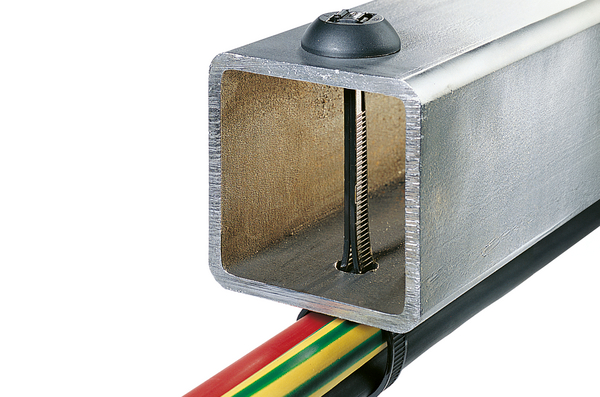

Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - example truck frame rails.

Application Tool MK21, EVO7, EVO7SP, EVO9, EVO9HT, MK9SST
Colour Black (BK)
Fixation Method Connector Clip
Identification Plate Position none
Pack Cont. 50pcs.
Package Quantity per bag
PART DESCRIPTION DE863220-PA66HS-BK
Part No. PFC300
Product Family DE863220 with square head, 135 N loop tensile strength
Product Group Cable Ties for single hole application (Chassis Tie)
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Outside Serrated
Bundle ∅ max. 80.0mm
Bundle ∅ min. 10.0mm
for Hole ∅ (FH) 9.0 mm
Height (H) 7mm

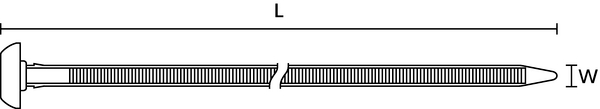

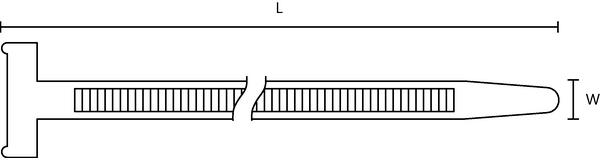

Length (L) 300mm
Min.Tensile Strength 135N
Width (W) 6.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Material PA66HS
Material Head Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C
Specifications
GTIN-13 / EAN 4031026268170
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 50
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01664
Packaging 1 - Weight (kg) 0.223723kg
Packaging 1 - Width (m) 0.32m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 2000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.59892kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 213.2kg
Packaging 4 - Width (m) 0.8m
