Bundling Clips with Fir Tree, for Distance Routing : SOC4MFT6

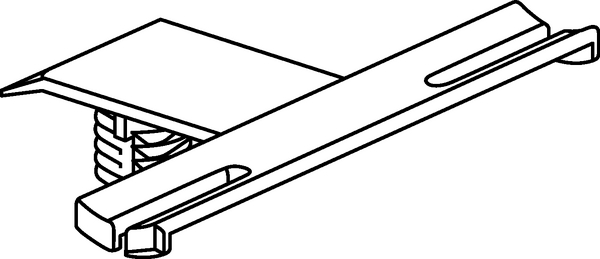

Bundling Clip, round hole 6.5 - 7.0 mm, fir tree, offset, high impact modified, heat stabilised, blackArticle number: 155-30902

Features

  • Separate, flexible winding bars at either end of clip
  • Perfect match for cable bundle
  • Spacer to ensure safely guided cable looms at set distance from edges or drill holes
  • Fir tree base facilitates use on metals of varying thicknesses
  • High holding forces ensure cable bundle is fastened securely

Certifications & Approvals

Application

Originally designed for the Automotive industry, these clips offer simple and easy methods of securing cable hoses or pipes. They have many applications within a wide range of industries.

Anti rotation (Yes / No) NO
Colour Black (BK)
Fixation Method Fir Tree
Fixing Hole Shape Circular
Pack Cont. 500pcs.
Package Quantity per bag
PART DESCRIPTION SOC4MFT6-PA66HIRHS-BK
Part No. SOC4MFT6
Product Family SOC4MFT6LG for distance routing 20.0 mm
Product Group Bundling Clips with Fir Tree, for Distance Routing
Wings on clip base (Yes / No) YES
Bundling Bar Length 55.0mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.7 - 5.1 mm
Height (H) 13.7mm
Length (L) 55.0mm
Length (L2) 20.32mm
Length of Fir Tree 13.7mm
Offset Length 20.0mm
Panel Thickness 0.03 " – 0.20"
Panel Thickness max. 0.7 – 5.1mm
Panel Thickness max. (imperial) 0.2"
Panel Thickness min. (imperial) 0.03"
Width (W) 20.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Material PA66HIRHS
Operating Temperature - °C -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
GTIN-13 / EAN 4031026217543
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00442
Packaging 1 - Weight (kg) 0.770001kg
Packaging 1 - Width (m) 0.34m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 6000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 10.701736kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 149.352kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
