Bundling Clips with Fir Tree, for Distance Routing : SOC5FT6LG

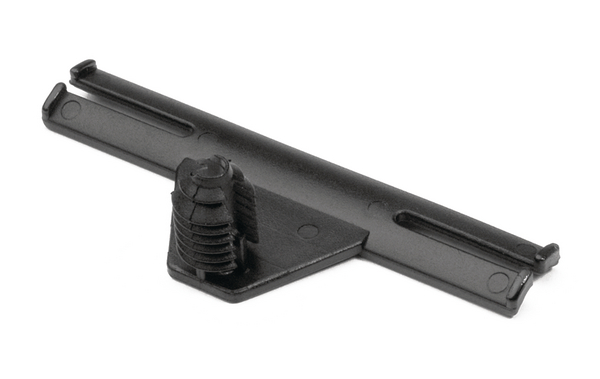

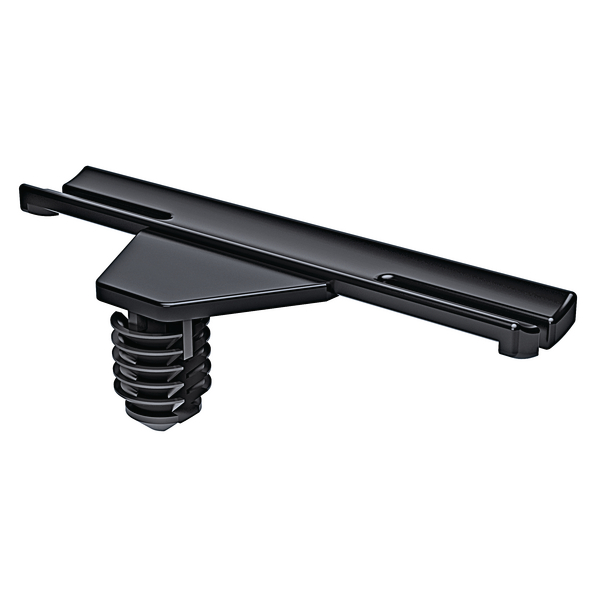

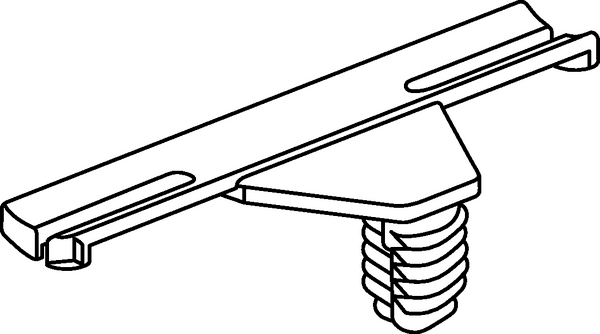

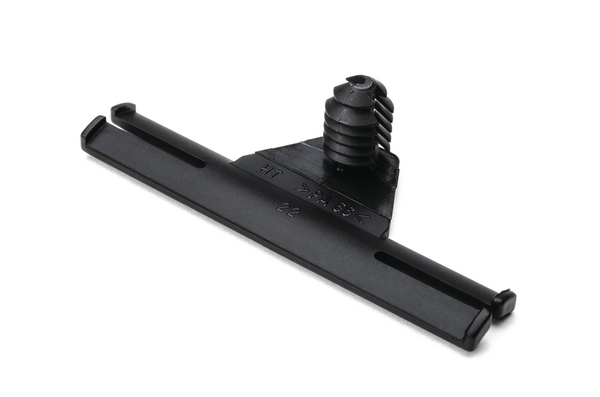

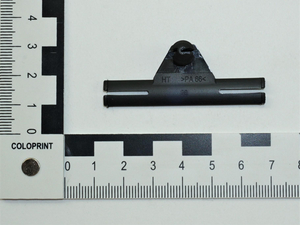

Bundling Clip, round hole 6.5 - 7.0 mm;6.1 - 6.6 mm (hexagonal), fir tree, offset, high impact modified, heat stabilised, blackArticle number: 151-00074

Features

  • Especially for banding of cables and cable harnesses
  • Fastened onto bundling bar with cable ties or adhesive tape
  • Various base geometries for wide variety of metal gauges and bore diameters

Certifications & Approvals

Application

Originally designed for the automotive industry, these clips offer simple and easy methods of securing cables, hoses or pipes. These parts are used in the automotive industry for assembly of cable harnesses.

Anti rotation (Yes / No) NO
Colour Black (BK)
Fixation Method Fir Tree
Pack Cont. 500pcs.
Package Quantity per bag
PART DESCRIPTION SOC5FT6LG-PA66HIRHS-BK
Part No. SOC5FT6LG
Product Family SOC5FT6LG for distance routing 13.0 mm
Product Group Bundling Clips with Fir Tree, for Distance Routing
Wings on clip base (Yes / No) YES
Bundling Bar Length 55.0mm
for Hole ∅ (FH) 6.5 - 7.0 mm, 6.1 - 6.6 mm (hexagonal)
for Panel Thickness min - max 0.7 - 5.1 mm

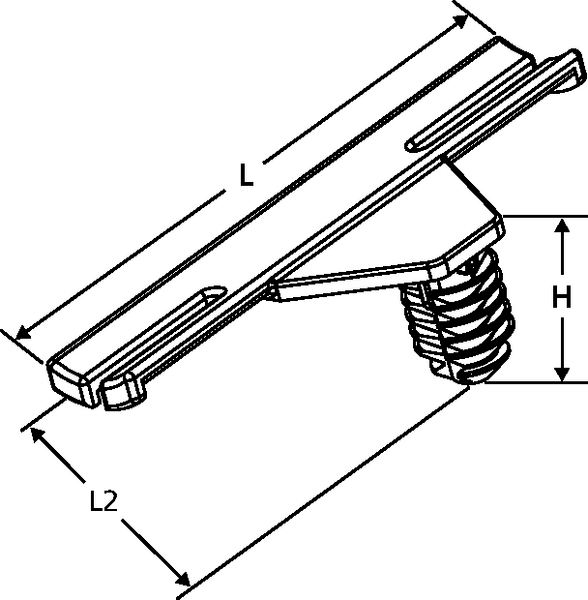

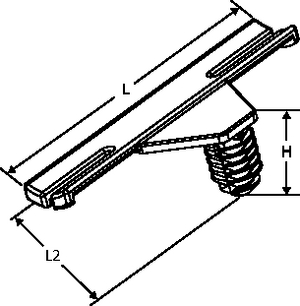

Height (H) 12.5mm
Length (L) 55.0mm
Length (L2) 21.0mm
Offset Length 13.0mm
Panel Thickness 0.03 " – 0.20"
Panel Thickness max. 0.7 – 5.1mm
Panel Thickness max. (imperial) 0.2"
Panel Thickness min. (imperial) 0.03"
Width (W2) 13.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Material PA66HIRHS
Operating Temperature - °C -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
GTIN-13 / EAN 4031026251875

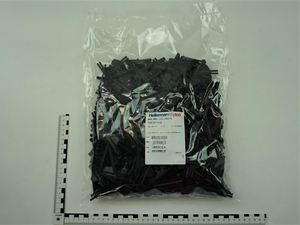

Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 0.688815kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 10000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 14.5963kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 196.2kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
