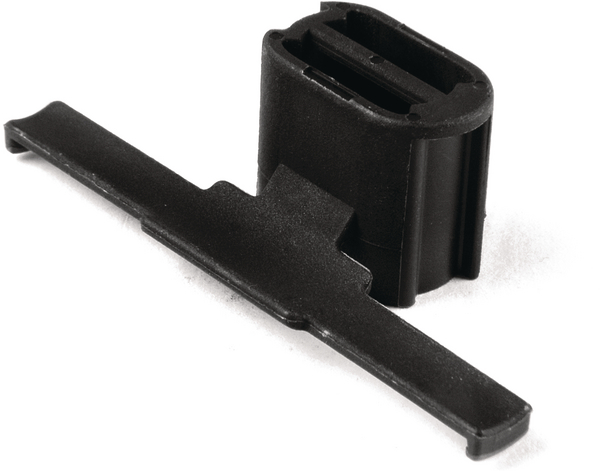

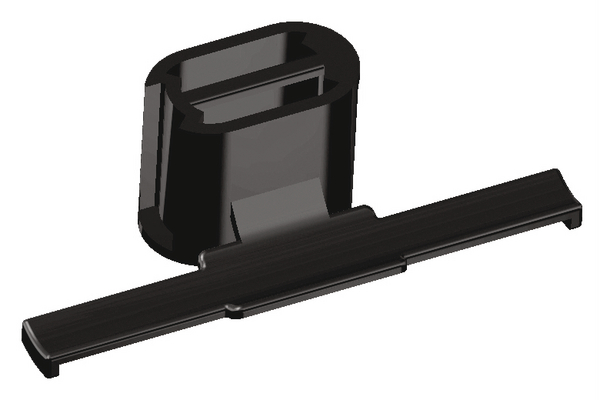

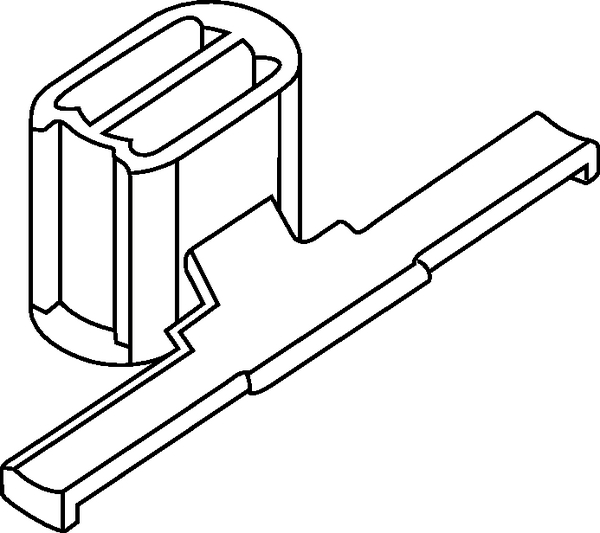

Bundling Clips for Weld Studs, lateral adjustment : TC-SB5C

Bundling Clip, stud size 5 mm, heat stabilised, blackArticle number: 151-26101

Features

  • Especially for banding of cables and cable harnesses
  • Fastened onto bundling bar with cable ties or adhesive tape
  • Various base geometries for wide variety of metal gauges and bore diameters

Certifications & Approvals

Application

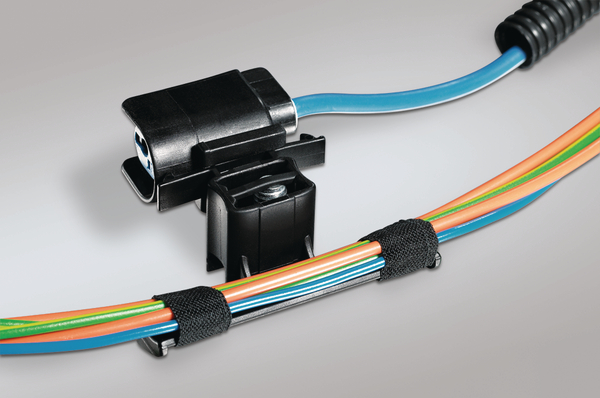

Originally designed for the automotive industry, these clips offer simple and easy methods of securing cables, hoses or pipes. These parts are used in the automotive industry for assembly of cable harnesses.

Colour Black (BK)
Fixation Method Weld Stud Fixing

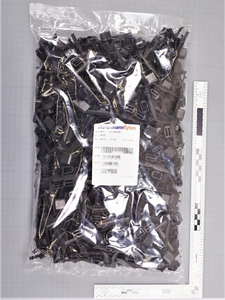

Pack Cont. 500pcs.
Package Quantity per bag
PART DESCRIPTION TC-SB5C-PA66HS-BK
Part No. TCSB5CSD
Product Family Bundling Clips for Weld Studs
Product Group Bundling Clips for Weld Studs, lateral adjustment

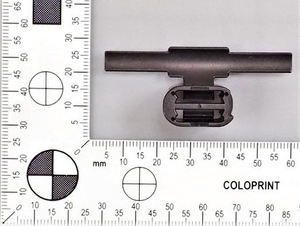

Bundling Bar Length 55.0mm
Bundling Bar Length 2.17"
Length (L) 55.0mm
Max Stud Length 12.5mm
Max Stud Length 0.49"
Stud ∅ 5.0 mm
Stud ∅ 0.2"
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Material PA66HS
Operating Temperature - °C -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
GTIN-13 / EAN 4031026238951
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 1.173478kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 5000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.55478kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 171.6kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
