Spiral wrap, nom⌀9mm, ⌀10-100mm, -40 °C to +95 °C, intermittent +130 °C, black, 30m
Art.-No. 161-44200 | SBPAV09-PA6V0-BK |

Copied

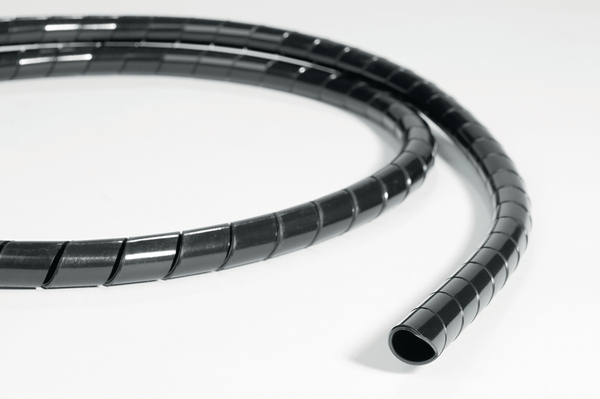

SBPA - Black fire retardant PA Spiral Wrap.
Spiral binding SBPAV0.

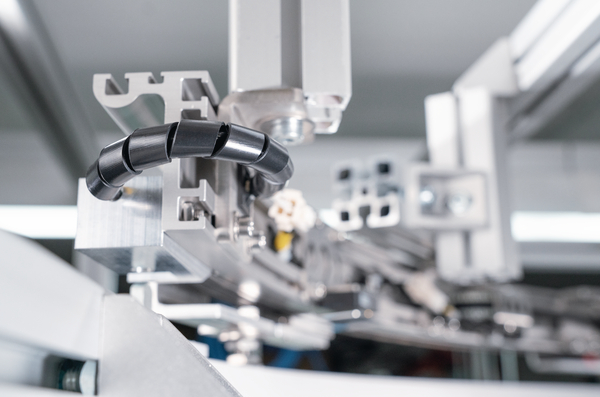

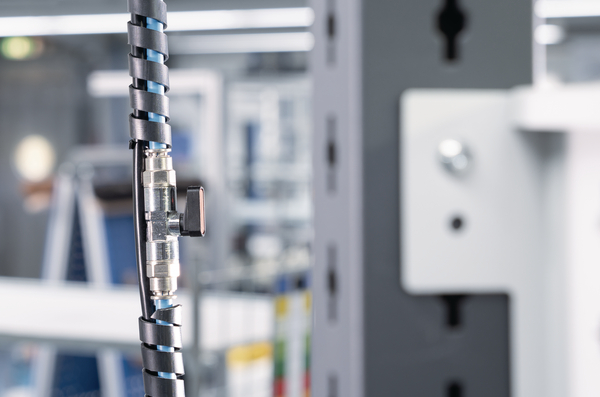

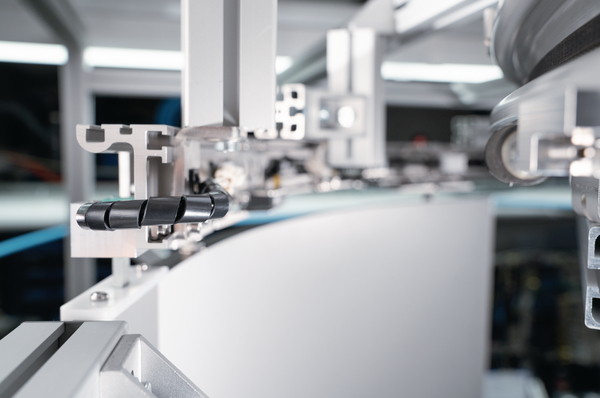

SBPAV0 Spiral Wrap - flexible cable and hose bundling.
SBPAV0 - flexible flame retardant spiral wrap.
SBPAV0 - flexible flame retardant spiral wrap.
Spiral binding SBPAV0.
Spiral binding

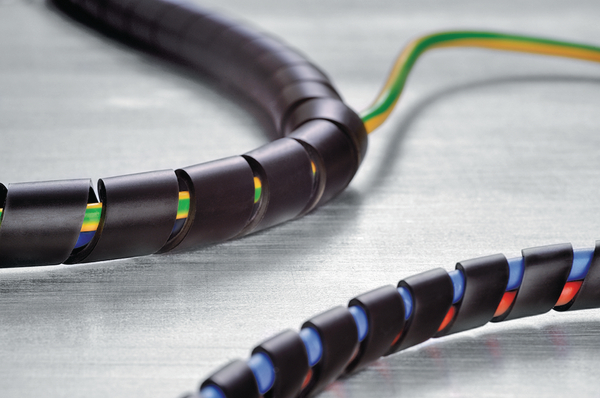

    • Organises and protects cables and hoses
    • Self-extinguishing according to UL94 V0
    • Very good protection against abrasion
    • Suitable for retro-fitting
    • Cables branch out at any point
    • Wide range of diameters
    Downloads CAD-Download
    Application Due to its excellent flame protection properties, SBPAV0 spiral binding is particularly suitable for the rail and aviation industries as well as public buildings.
    Colour Black (BK)
    Key product features abrasion resistant, wrappable
    Material Polyamide 6 V0 (PA6V0)
    PART DESCRIPTION SBPAV09-PA6V0-BK
    Package Content 30m
    Package Content packed in box
    Product Family SBPAV0
    Product Group PA Flame-retardant Spiral Binding
    Type SBPAV09
    Variant Spiral Binding
    Bundle ⌀ max. 100mm
    Bundle ⌀ min. 10mm
    Diameter (D) 9.0mm
    Nominal ⌀ 0.38"
    Nominal ⌀ 9mm

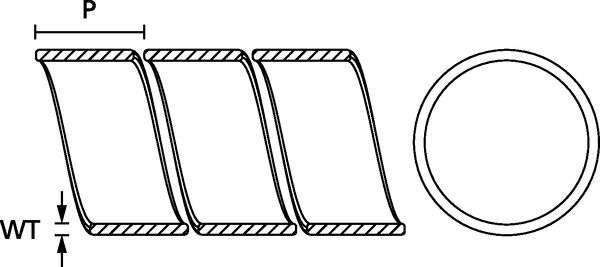

    Pitch (P) 12.5mm
    Wall (WT) 1.0mm
    ELV compliant (Article 4 - 2) YES
    EN 45545-2 Results R22 HL2, R23 HL3
    Flammability UL 94 V0
    Halogen-free Yes
    Hazardous Goods No
    Intermittent Operating Temperature +130°C
    Operating Temperature -40 °C to +95 °C, intermittent +130 °C
    ROHS compliant Yes
    Specifications
    Specifications EN 45545-2
    GTIN-13 / EAN 5022660549076
    Packaging 3 - Height (m) 0.14m
    Packaging 3 - Length (m) 0.38m
    Packaging 3 - Qty 30
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.016m³
    Packaging 3 - Weight (kg) 1.684kg
    Packaging 3 - Width (m) 0.3m
    Packaging 4 - Height (m) 1.264m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 1920
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.213m³
    Packaging 4 - Weight (kg) 128.782kg
    Packaging 4 - Width (m) 0.8m
    Reel Length 30m
