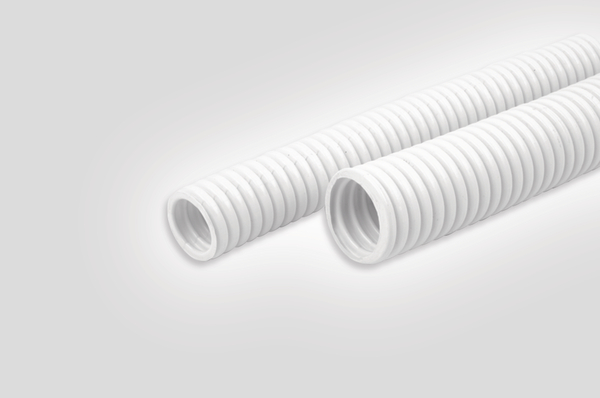

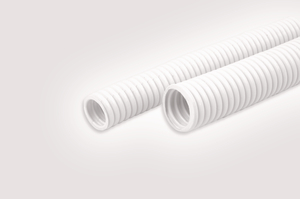

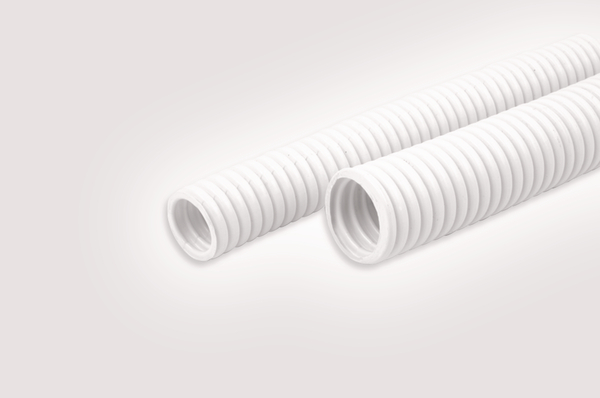

Convoluted Tubing
Art.-No. 911-01832 | V20HT2605-PVC-WH |

Copied
CTN series convoluted tubing.

    • Medium impact, flexible, UV stable PVC materia
    • Meets the requirements of the relevant sections of SABS IEC 60614-1:1994 – pliable conduits for electrical installations
    • Supplied in white as standard
    • Allows for a wide range of conduiting applications
    • Tubing dimensions are compatible with the standard range of commercially available PVC conduit fittings
    Downloads
    Colour White (WH)
    Description CONVOLUTED TUBING LOW IMPACT 50m
    Material Flexible Polyvinyl Chloride (PVC)
    PART DESCRIPTION V20HT2605-PVC-WH
    Pack Cont. 50m
    Package Content packed in reel
    Part No. V20HT2605
    Product Family Light Duty (Medium Impact)
    Product Group Convoluted Tubing
    Type V20HT2605
    Inside ⌀ (ID) 16.0mm
    Outside ⌀ (OD) 20.0mm
    Operating Temperature -5 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 6005242026614
    Reel Length 50m
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
