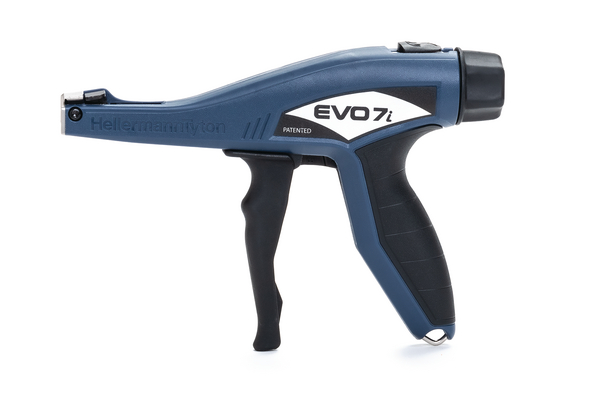

Cable tie tool for 2.5 - 4.8mm, manual, 0.281kg, blue
Art.-No. 110-77001 | EVO7i-MET/PL-BU Details

  • Ergonomic tool for use anywhere
  • Extremely low maintenance
  • Adjustable preset tension device
  • Tensions and automatically cuts HellermannTyton cable ties up to 4.8mm wide
  • Housing made of resilient and lightweight glass fibre-reinforced polyester
Show more
Application HellermannTyton's EVO7i mechanical hand tool was ergonomically designed to reduce the risks of repetitive stress injuries to operators while concurrently increasing productivity. The EVO7i Tension/Lock/Cut Technology delivers performance, safety and comfort for the operators. The “i” in EVO 7i stands for industrial. With enhanced features for extended performance, HellermannTyton continues to deliver the tools preferred by manufacturers. • Tested to over one million cycles, for unparalleled performance • Factory-calibrated tensioning provides consistently reliable results for demanding applications • Short and standard span for different sized hands, as opposed to a one-size approach • Customer serviceable blade and nosepiece –backward compatible with EVO 7 • 12 months warranty included
Colour Blue (BU)
Description EVO7i
For Cable Tie Width 0.10 - 0.19"
For Cable Tie Width 2.5 - 4.8mm
For Ties T18, T30, T40, T50, T80, IT18, IT50
Material Metal (MET), Plastic (PL)
Operation manual
PART DESCRIPTION EVO7i-MET/PL-BU
Pack Cont. 1pc.
Package Content packed in box
Product Family EVO7i up to 4.8 mm strap width
Product Group Manual tensioning tool plastic housing
Strap Thickness max. 1.5mm
Tool property Manual clipping
Tool suitable cable tie material Plastic
Type EVO7i
Height (H) 137.3mm
Length (L) 191.0mm
Strap Width max. 4.8mm
Tension Setting Adjustable
Width (W) 34.2mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
GTIN-13 / EAN 4031026621791
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.235m
Packaging 1 - Qty 1
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00239
Packaging 1 - Weight (kg) 0.489kg
Packaging 1 - Width (m) 0.185m
UNSPSC Key 27112410
