Manual tensioning tool for cable ties, simple version : MK20

Manual Tensioning Tool for Cable Ties up to 4.8 mm strap width, Article number: 110-20006

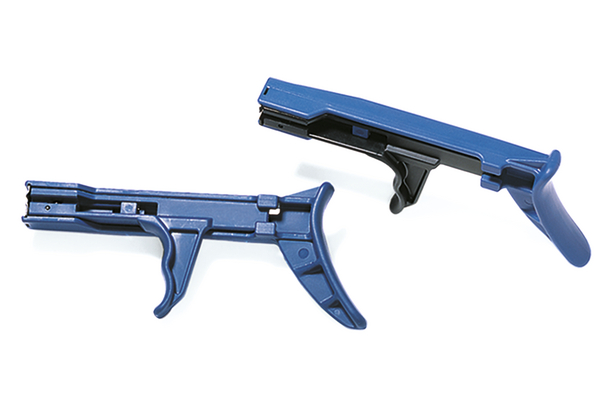

Manual tensioning tools MK20 and MK21
Manual tensioning tools MK20 and MK21

Features

  • Lightweight, ergonomic tools
  • For tensioning and cutting standard cable ties 4.8 - 7.6 mm width
  • MK20 and MK21 ideal for on-site assembly

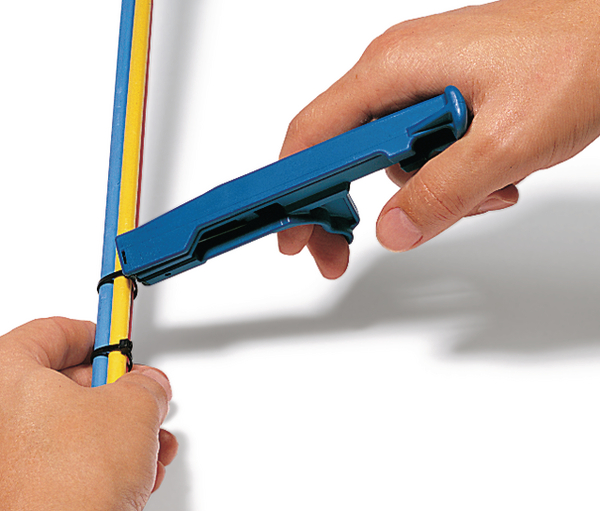

  • Mounted and pretensioned ties are cut off by twisting tool

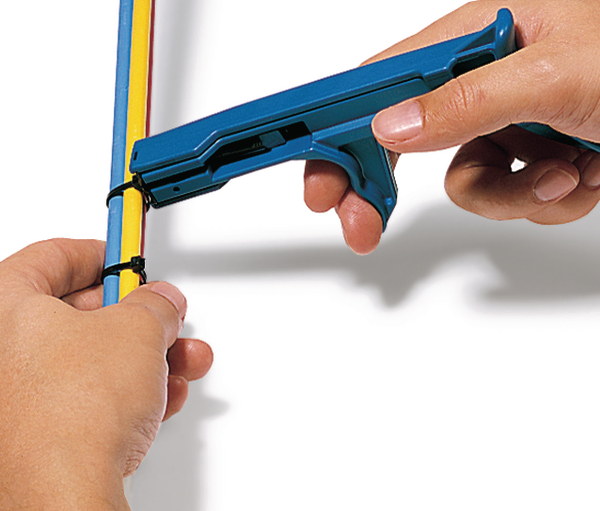

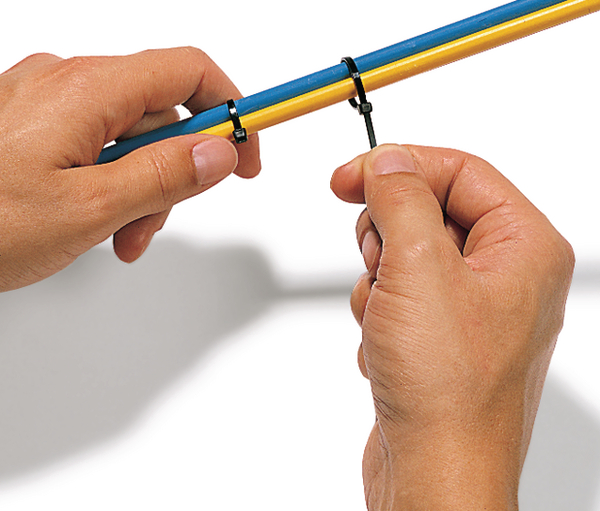

  • Simply apply cable tie, tension and twist to cut

Certifications & Approvals

MK20 up to 4.8 mm strap width is suitable for following markets and industries

  • Electronics Industry Electronics Industry
Colour Blue (BU)
Operation manually
Pack Cont. 1pc.
Package Quantity per pcs.
PART DESCRIPTION MK20-PL-BU
Part No. MK20
Product Family MK20 up to 4.8 mm strap width
Product Group Manual tensioning tool for cable ties, simple version
Strap Thickness max. 1.5
Tension Setting Tools Manual
Tool property Manual clipping
Tool suitable cable tie material Plastic
Strap Width max. 4.8mm
ELV compliant (Article 4 - 2) YES
Hazardous good No
Material Plastic (PL)
Material PL
Nato number 5120-12-326-5079
Specifications
EAN / GTIN 4031026103303
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.215m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00054m³
Packaging 1 - Weight (kg) 0.05kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.35m
Packaging 3 - Length (m) 0.57m
Packaging 3 - Qty 100
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0738m³
Packaging 3 - Weight (kg) 5.5kg
Packaging 3 - Width (m) 0.37m
Packaging 4 - Height (m) 1.194m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1200
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.146m³
Packaging 4 - Weight (kg) 87.0kg
Packaging 4 - Width (m) 0.8m
Weight 0.05kg
