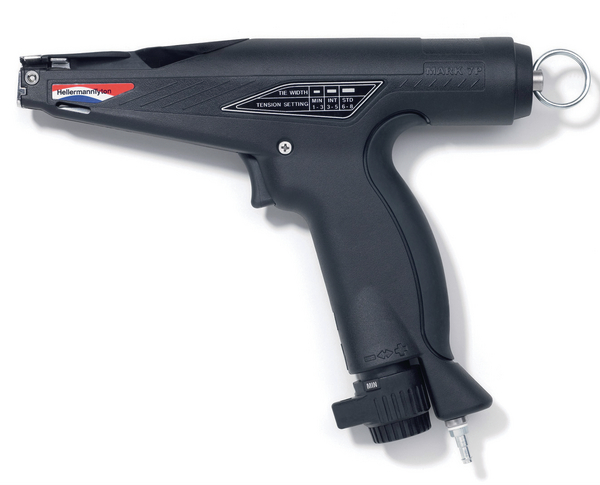

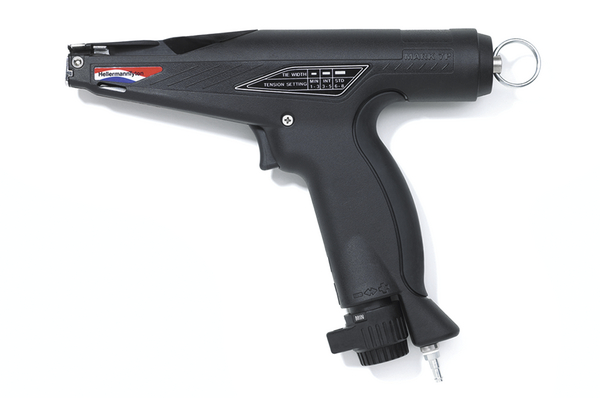

Pneumatic tensioning tool plastic housing : MK7P

Pneumatic tensioning tool up to 4.8 mm strap widthArticle number: 110-07100

Features

  • Enhanced technology for better application of cable ties
  • Improved compressed air supply for faster tensioning piston movement
  • Shorter processing time and greater volume of connecting tie application
  • Genuine potential for rationalisation
  • Ergonomic design, moulded handle to prevent slippage, reduce operator fatigue
  • Lightweight but very tough housing made of glass fibre-reinforced plastic
  • Meets high industry standards
  • Tensionioning and cutting off cable ties flush with head by pressing one button
  • Smooth cut edge to prevent injuries
  • Automatic ejection of cut-off cable tie end

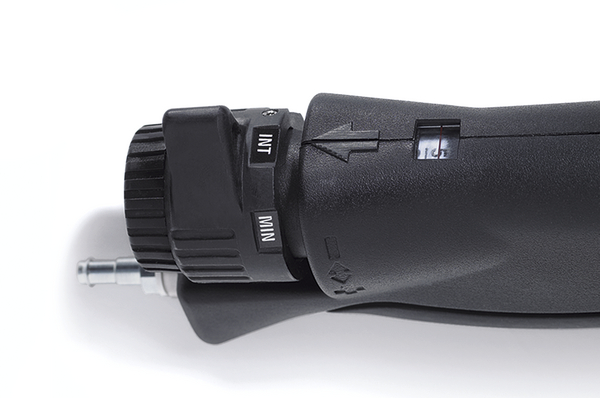

  • Three-level preset control to set tool tension
  • Optional safety cap to prevent tension setting from being changed by accident
  • (Important when bundling sensitive materials and maintaining process reliability)
  • Non-slip, comfortable grip, soft touch trigger, and one-touch tensioning/cut off
  • Very lightweight and easy to use on all cable ties 2.5 - 4.8 mm wide

Certifications & Approvals

Application

The MK7P pneumatic bundling tool sets a new benchmark for the rational application of ties in the industrial production process. Improved compressed air supply moves the tensioning piston faster than in comparable tools.

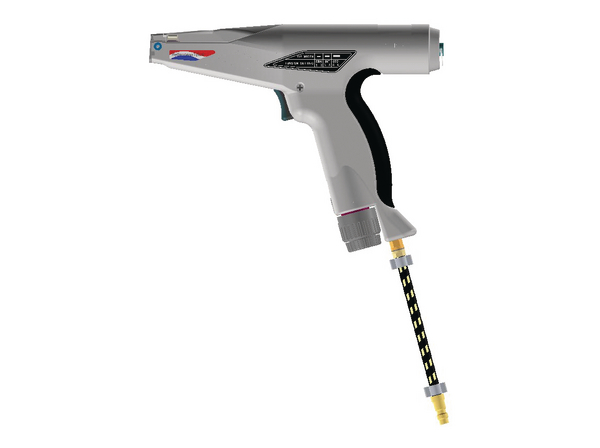

Air att. Position lower air connection
Air Pressure (min.) 3Bar
Air Pressure Psi (max.) 90Psi
Colour Black (BK)
Description MK7P
for Air Pressure min - max 3 - 6 Bar
Number of cycles 1000000
Operation pneumatic
Pack Cont. 1pc.
Package Quantity per pcs.
PART DESCRIPTION MK7P-PLGF-BK
Part No. MK7P
Product Family MK7P up to 4.8 mm strap width
Product Group Pneumatic tensioning tool plastic housing
Strap Thickness max. 1.5
Tool property Automatic cut off
Tool suitable cable tie material Plastic
Air Pressure (max.) 6Bar
Air Supply non oiled, oiled
Hose Internal Diameter 4.0mm
L x H x W approx. 220 x 170 x 40 mm
Pawl Travel Stroke 2.54cm
Pawl Travel Stroke 1.0"
Strap Width max. 4.8mm
Strap Width max. (G) 0.18"
Tension force (N) 60-170N
Tension Setting Adjustable
CE Certification No
ELV compliant (Article 4 - 2) YES
Hazardous good No
Material PLGF
Material Plastic, glass-fibre reinforced (PLGF)
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
GTIN-13 / EAN 4031026218045
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.37m
Packaging 1 - Qty 1
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00666
Packaging 1 - Weight (kg) 1.37kg
Packaging 1 - Width (m) 0.3m
Packaging 2 - Type carton
