31/05/2025

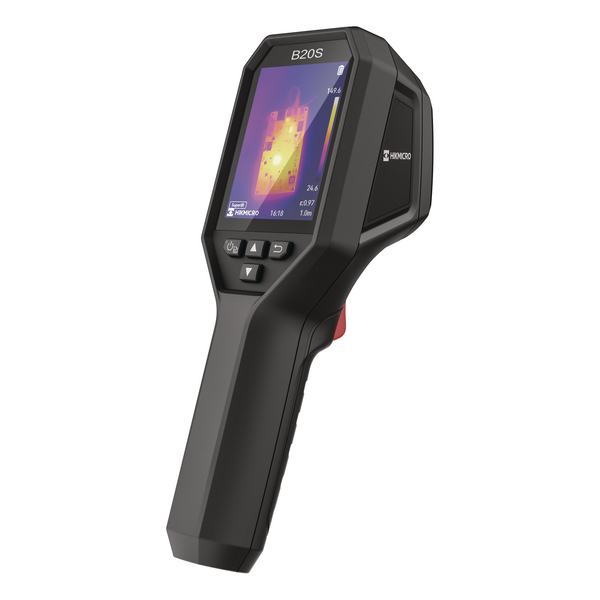

A Thermal Camera detects infrared radiation, visualizing heat differences for applications in inspections, security and even firefighting diagnostics.
Art.-No. 911-02424 | TICHB20S32-BK |

Copied

    • IR Resolution: 256 x 192 (49152 pixels)
    • Super IR: Yes, on captured Themal Images
    • Display: 240 x 320 Resolution 3.2" LCD Screen
    • IP54
    • Image Mode: Thermal/Visual/Fusion/PIP
    • Storage media: Built-in 16GB eMMC
    • (Approx 35 000 Images)
    • USB Type-C
    • Battery Operating Time: 6 hours
    Show more
    Colour Black (BK)
    PART DESCRIPTION TICHB20S32-BK
    Package Content packed in box
    Part No. TICHB20S32
    Product Group Thermal Imager
    Type TICHB20S32
    Height (H) 124mm
    Length (L) 222mm
    Temperature Measuring Range (+Accuracy) -20°C to 550°C
    Width (W) 74mm
    Operating Temperature -10 °C to +50 °C
    Art.-No.: 911-02424 Details Contact
