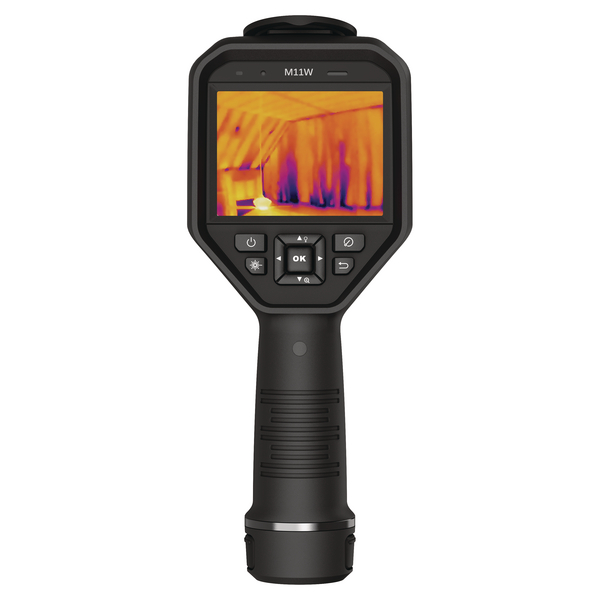

A Thermal Camera detects infrared radiation, visualizing heat differences for applications in inspections, security and even firefighting diagnostics.
Art.-No. 911-02422 | TICHM11W35-BK

Copied

    • IR Resolution: 192 x 144 (27 648 pixels)
    • Super IR: 384 x 288 (110 592 pixels)
    • Display: 640 x 420 Resolution 3.5" LCD Touch Screen
    • IP54
    • Storiage media: Removable 32GB Micro SD Card
    • (Approx 30 000 Images)
    • Video Storage capacity: +/- 15 hours
    • Video file format: MP4
    • USB Type-C
    • Battery Operating Time: 6 hours
    Application Designed for professional inspections of large objects, offering a wide field of view (FOV) that captures more of the scene in a single image.
    Colour Black (BK)
    Description Thermal Image Camera Handheld
    PART DESCRIPTION TICHM11W35-BK
    Package Content packed in box
    Part No. TICHM11W35
    Power Supply Rechargeable Li-ion battery
    Product Family TICHM11W35
    Product Group Thermal Imager
    Type TICHM11W35
    Frequency (+Accuracy) 25Hz
    Height (H) 244mm
    Length (L) 100mm
    Temperature Measuring Range (+Accuracy) -20°C to 550°C
    Width (W) 104mm
    Hazardous Goods No
    Operating Temperature -10 °C to +50 °C
    Shelf Life 12 months
    Art.-No.: 911-02422 Contact
