Digital timers
Art.-No. 911-02015 | TWST2-WH

Copied
  • Locally stored programming
  • Countdown timer from 1min up to 23hrs 59mins
  • Up to 30 On/Off Programs
  • Adjustable settings from daily to day by day
  • Devices can be grouped as well as individually named
  • Shareable device control via WiFi
  • Remote On/Off Switching
  • On/off switching can be operated manually via the Pushbutton
  • Remote manual control via dry contact input
  • Contact position memory in the event of a power failure
  • Ideal for switching lighting circuits and low current resistive loads.
Application A smart timer used for controlling electrical circuits via a smartphone app
Colour White (WH)

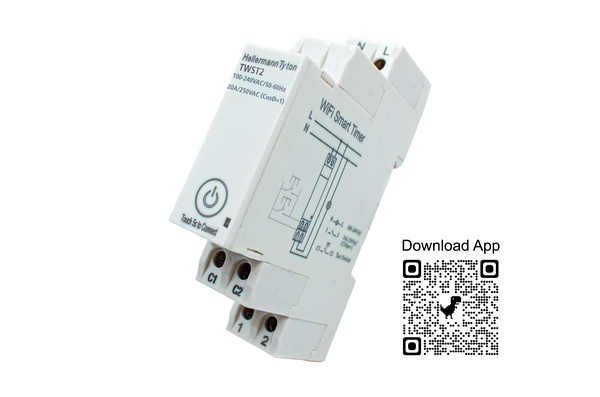

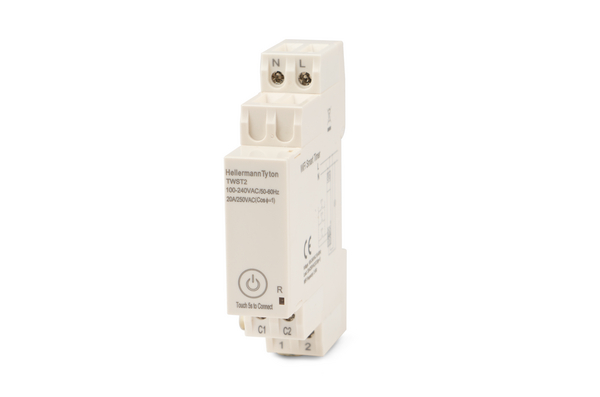

Description Timer Wi-Fi Smart Relay
PART DESCRIPTION TWST2-WH
Package Content packed in EA
Part No. TWST2
Power Supply Mains, lithium back-up battery reserve
Product Family TWST2
Product Group WiFi Smart Timer
Type TWST2
AC Current (+Accuracy) 20A @ 250VAC (COS ⌀=1)
AC Voltage (+Accuracy) 100-240V (50-60Hz)
Frequency (+Accuracy) 2.4GHz (WiFi)
Height (H) 64mm
Length (L) 86mm
Width (W) 17.5mm
Operating Temperature -10 °C to +60 °C
Shelf Life 12 months
GTIN-13 / EAN 6005243024015
