UJB1-ABS-GY
Art.-No. 911-01162 | UJB1-ABS-GY |  Details

    • Manufactured from high impact, corrosion and UV-resistant material
    • For use in general and industrial installations
    • SABS 1222 IP66 and IP68. (Dust and water tight)
    • Allows for 1, 2, 3 and 4 way connections
    • Blanking plugs, O-rings and lock nuts provided
    • No need for drilling and tapping
    • Internal earth plate provided (no exposed metal parts)
    • Din rail mounting studs provided
    • UJB1/2T - Special locking key to prevent unauthorised entry (optional)
    • UBJ1/2C - UJB1 with clear lid
    Show more
    Colour Grey (GY)

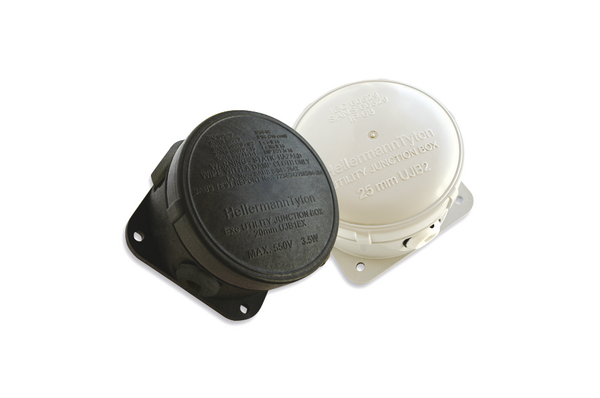

    Description UTILITY JUNCTION BOX No 1 GREY
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION UJB1-ABS-GY
    Pack Cont. 1pc.
    Part No. UJB1
    Type UJB1
    Fixing Hole Centres (F) 122mm
    Fixing Hole Centres (F2) 96mm
    Height (H) 75.0mm
    Height (H2) 57.0mm
    Thread Size M20
    Width (W) 109.0mm
    Width (W2) 94.0mm
    for Hole ∅ (FH) 6.9 mm
    GTIN-13 / EAN 6005242031496
