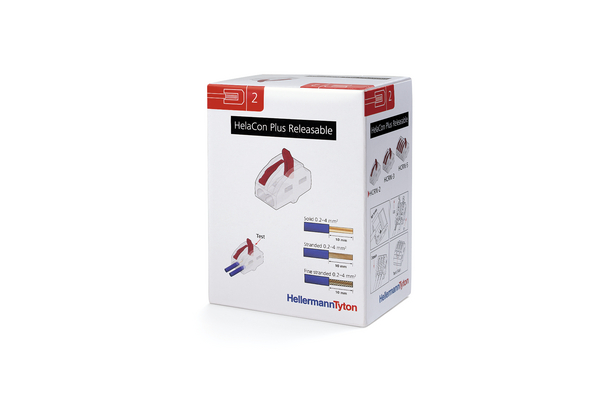

Push-in wire connector, 2 conductors, 0.2 to 4.0 mm² all types of wire, transparent, 80pcs.
Art.-No. 148-90059 | HCRN-2-PC-CL Details

  • Universal push-in wire connector for solid, stranded and fine-stranded wires
  • Compact size connector
  • Wire clamping range: 0.2 - 4.0 mm²
  • Separate voltage test entry on the top
  • For proper fixing that can be visually checked through transparent housing
  • Safe application, installation and maintenance
Show more
Application The HelaCon Plus Releasable connectors are used for all types of wire to connect cable and conductors in the field of electrical installation. The connectors can be used in all kinds of junction boxes either on-wall or flush-mounted. HelaCon offers the best possible solution when convenient processing and maximum safety is required.
Colour Transparent (CL)
Material Polycarbonate (PC)
Number of Conductors 2
Pack Cont. 80pcs.
Package Content packed in pack
Product Family HelaCon Plus Releasable
Product Group Connectors - For all Types of Wire
Suitable for flexible core (Yes/No) Yes
Suitable for multi wire core (Yes/No) Yes
Suitable for solid core (Yes/No) Yes
Type HCRN-2
Height (H) 14.0mm
Length (L) 12.0mm
Max Current 32A
Max Voltage 450V
Stripping Length 10mm
Width (W) 20.5mm
Wire Range (VDE) 0.2 to 4.0 mm² all types of wire
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Operating Temperature -30 °C to +85 °C
ROHS compliant Yes
Specifications UL 486C
UL Listed (US and Canada) Yes
UL Listed (US and Canada) Yes
UL OCD link Link Link Link Link
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UL-File Number E316080
GTIN-13 / EAN 4031026657868
Packaging 1 - Height (m) 0.099m
Packaging 1 - Length (m) 0.075m
Packaging 1 - Qty 80
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00037
Packaging 1 - Weight (kg) 0.176kg
Packaging 1 - Width (m) 0.05m
Packaging 3 - Height (m) 0.32m
Packaging 3 - Length (m) 0.370m
Packaging 3 - Qty 5040
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.029
Packaging 3 - Weight (kg) 10.58kg
Packaging 3 - Width (m) 0.245m
Packaging 4 - Height (m) 110.4m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 136080
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 105.984
Packaging 4 - Weight (kg) 306.kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39131707
