Connectors

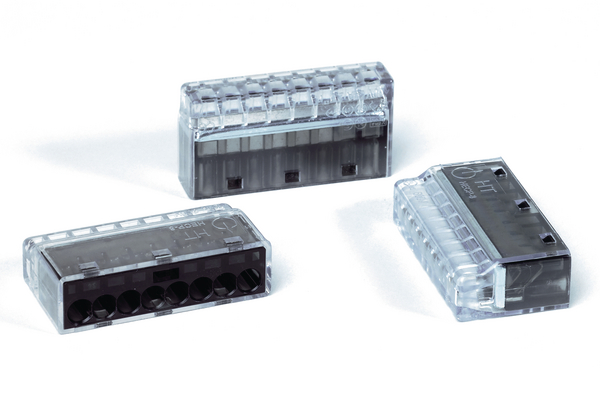

Art.-No. 911-01815 | HECP-8-PC-CL/GY Details

  • Sophisticated push-in wire connector
  • For professional cable connections in electrical housing
  • Double spring for easy processing
  • Supports installers in difficult situations like overhead work
  • For proper fixing that can be visually checked through transparent housing
  • Different colour codes for comfortable identification

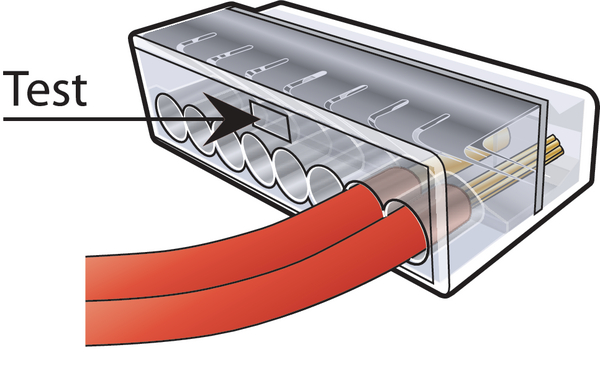

  • Separate voltage test entry on front
  • Safe application, installation and maintenance
Show more
Application The HelaCon connectors are used for fast, easy and reliable connection and distribution of cable and conductors in the field of electrical housing applications. The connectors can be used in all kinds of junction boxes either on-wall or flush-mounted. HelaCon Plus offers the best possible solution when convenient processing and maximum safety is required.
Colour Transparent (CL), Grey (GY)
Description HELACON PC358-GY PREPACK (4/PKT)
Material Polycarbonate (PC)
Number of Conductors 8
PART DESCRIPTION HECP-8-PC-CL/GY
Pack Cont. 4pcs.
Package Content packed in bag
Part No. HECP8P
Product Family HelaCon Plus
Product Group Connectors
Type HECP-8
Depth (D) 19.0mm
Height (H) 10.45mm
Max Current 24A
Max Voltage 450V
Stripping Length 11mm
Width (W) 36.7mm
Wire Range (cULus) AWG 12 to 22 solid/stranded
Flammability UL 94 V0
Halogen-free Yes
Operating Temperature -30 °C to +105 °C (cULus), -30 °C to +110 °C (VDE)
ROHS compliant Yes
Specifications
Specifications cULus, DEMKO, DIN EN 60998-2-2:2005-03, EN 60998-2-2:1993, FIMKO, NEMKO, SEMKO
GTIN-13 / EAN 6005242028380
