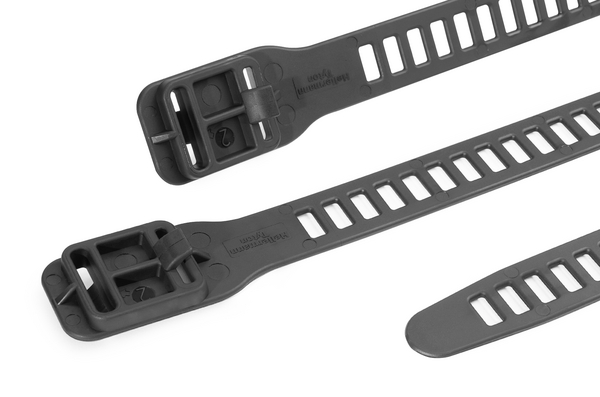

Cable Ties without serration in flexible TPU : SOFTFIX L
Cable Ties without serration in flexible TPU 340x11.0blackArticle number: 115-11350
Features
- Elastic and flexible cable ties with rounded and smooth edges
- Releasable and reusable
- Double slotted head with fixation pawl
- Flexibility ensures steady and evenly distributed pressure
- Tight fixation even in vertical position: prevent sliding down or loosing bundle
- Suitable for moving elements and vibrating applications like windmills, machines, robotics, pulsating tubing and conduits
- Ideal use for temporarily fixation for presentations, concerts, theatres, exhibitions
- Long lifetime when used indoor
- Remains flexible even at cold temperatures (-20 °C)
Certifications & Approvals
Application
The soft, flexible material makes these ties particulary suitable for use on sensitive wires, for instance fibre-optic cables. Additionally they are suitable for moving elements and vibrating applications. The double slotted head allows for parallel bundling.
More products in this product group
Cable Ties without serration in flexible TPU >| Colour | Black (BK) |
| Identification Plate Position | none |

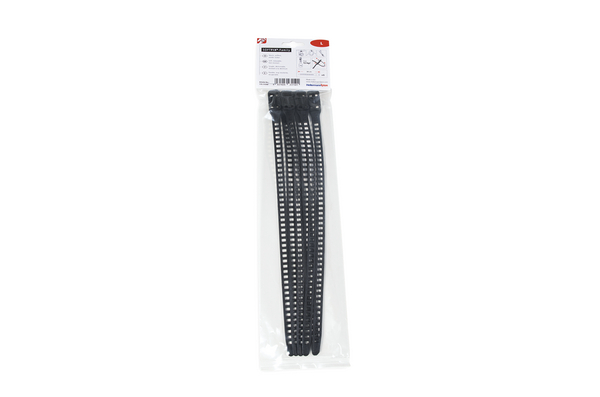

| Pack Cont. | 6pcs. |
| Package Quantity per | pack |
| PART DESCRIPTION | SOFTFIX L-TPU-BK |
| Part No. | SOFTL |
| Product Family | SOFTFIX-Family |
| Product Group | Cable Ties without serration in flexible TPU |
| Releasable Closure (Yes/No) | Yes |
| Short Description | The elasticity of the tie means that in applications such as securing trees, it is not necessary to loosen the tie and re-tighten it as frequently as with other products - the tie will grow with the tree. |
| Tie Closure | ladder style |
| Variant | No Serration |
|
|
|
| Bundle ∅ max. | 90.0mm |
| Length (L) | 340mm |
| Min.Tensile Strength | 123N |
| Thickness (T) | 2.3mm |
| Width (W) | 11.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Thermoplastic Polyurethane (TPU) |
| Material | TPU |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026231501 |
| Packaging 1 - Height (m) | 0.022m |
| Packaging 1 - Length (m) | 0.445m |
| Packaging 1 - Qty | 6 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00098m³ |
| Packaging 1 - Weight (kg) | 0.07kg |
| Packaging 1 - Width (m) | 0.1m |
| Weight | 0.07kg |
