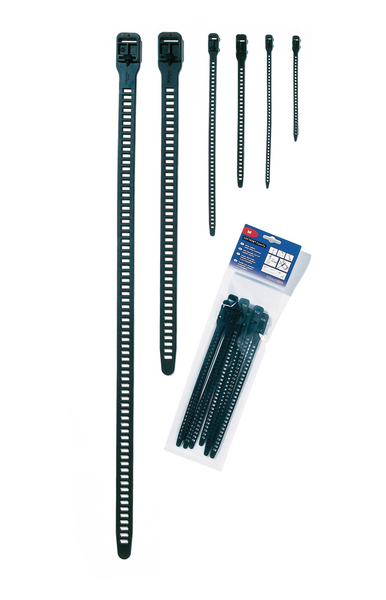

Releasable cable tie, 180x7.0mm, Ø10.0-45.0mm, 57N, black, 16pcs.
Art.-No. 115-07190 | SOFTFIX XS-TPU-BK Details

  • Elastic and flexible cable ties with rounded and smooth edges

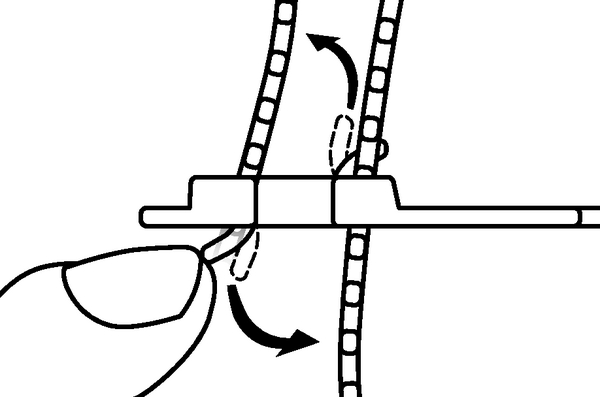

  • Releasable and reusable

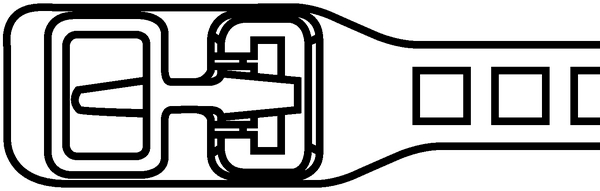

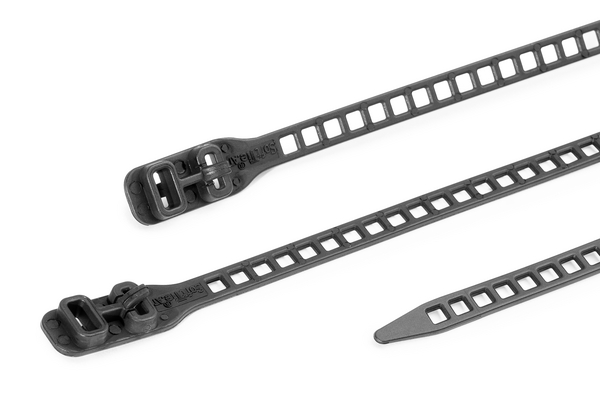

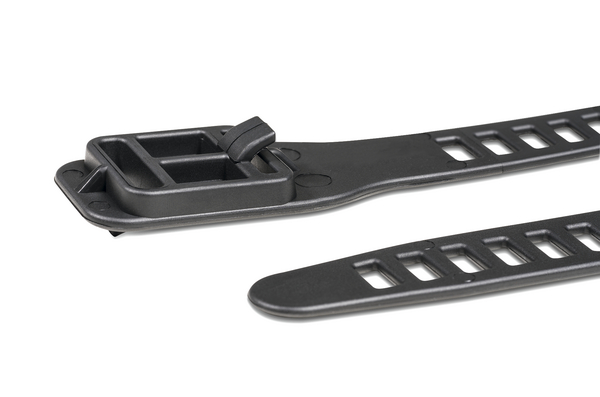

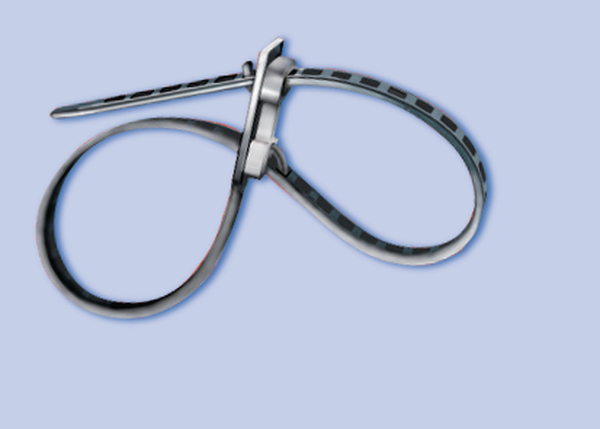

  • Double slotted head with fixation pawl
  • Flexibility ensures steady and evenly distributed pressure

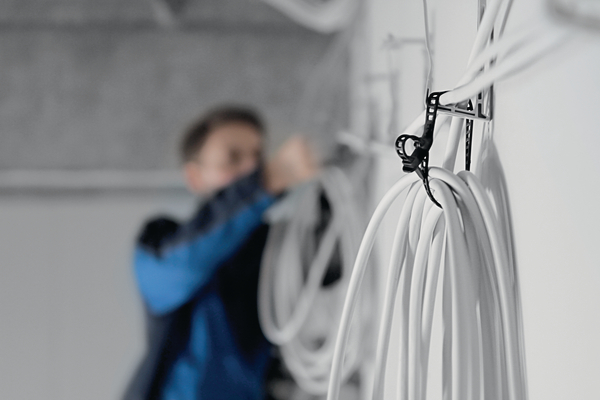

  • Tight fixation even in vertical position: prevent sliding down or loosing bundle
  • Suitable for moving elements and vibrating applications like windmills, machines, robotics, pulsating tubing and conduits

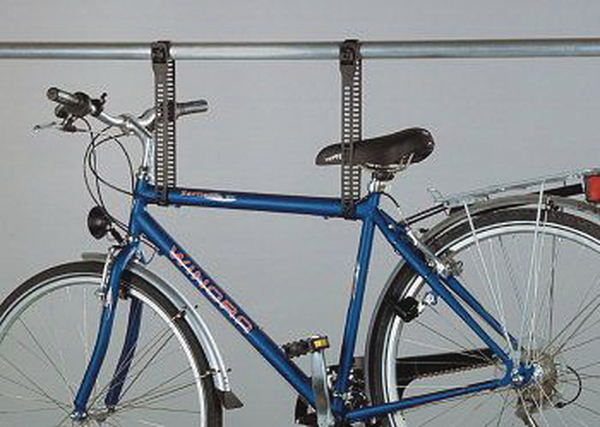

  • Ideal use for temporarily fixation for presentations, concerts, theatres, exhibitions
  • Long lifetime when used indoor
  • Remains flexible even at cold temperatures (-20 °C)
Show more

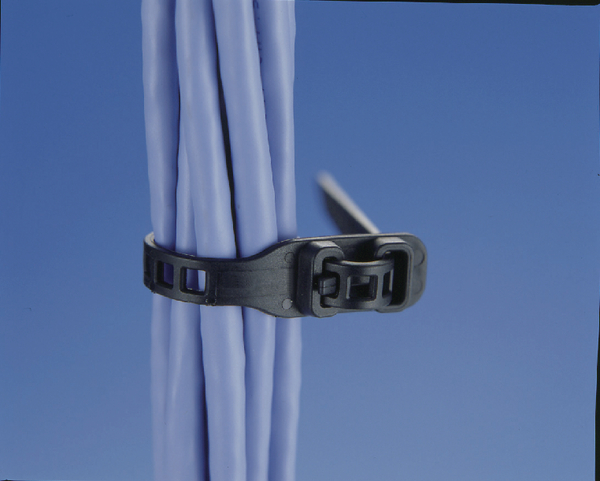

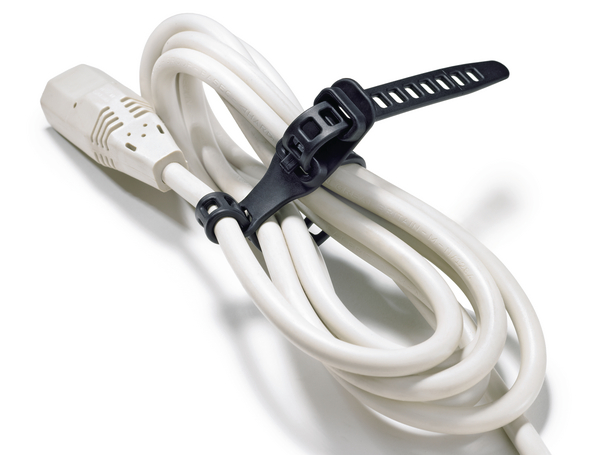

Application The soft, flexible material makes these ties particulary suitable for use on sensitive wires, for instance fibre-optic cables. Additionally they are suitable for moving elements and vibrating applications. The double slotted head allows for parallel bundling.
Colour Black (BK)
Fixation Method Releasable Cable Tie
Identification Plate Position none
Key product features releasable, for multiple routing
Material Thermoplastic Polyurethane (TPU)
PART DESCRIPTION SOFTFIX XS-TPU-BK

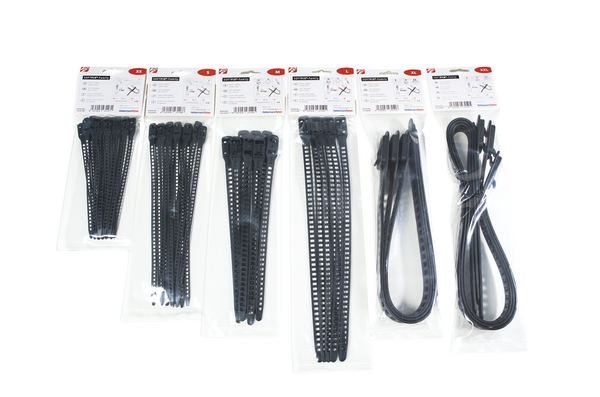

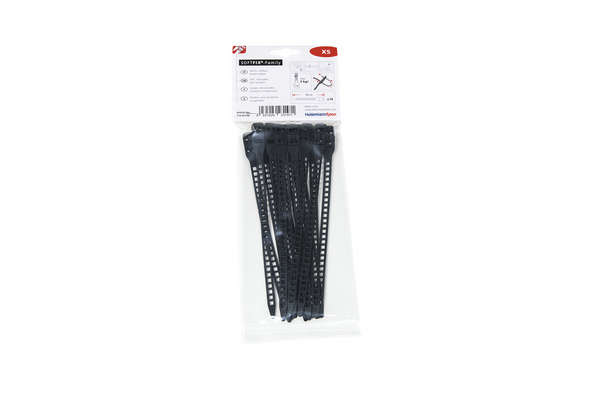

Pack Cont. 16pcs.
Package Content packed in pack
Part No. SOFTXS

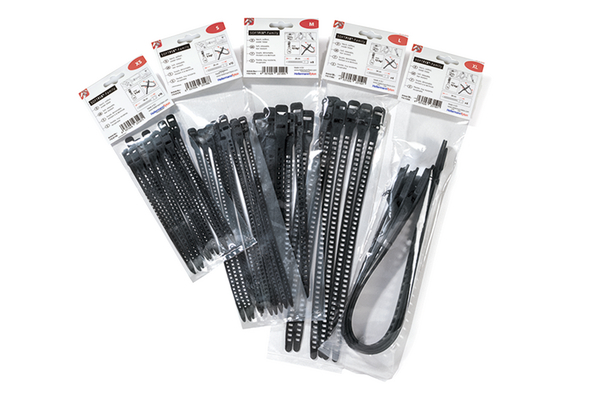

Product Family SOFTFIX-Family
Product Group Cable Ties without serration in flexible TPU
Releasable Closure (Yes/No) Yes
Tie Closure ladder style
Type SOFTFIX XS
Variant Not Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ min. 10.0mm
Length (L) 180mm
Min.Tensile Strength 57N
Thickness (T) 1.7mm
Width (W) 7.0mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Nato number 5975-12-360-5702
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
GTIN-13 / EAN 4031026231471
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.28m
Packaging 1 - Qty 16
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00056
Packaging 1 - Weight (kg) 0.047248kg
Packaging 1 - Width (m) 0.1m
UNSPSC Key 39121703
