handheld, battery-operated instrument that sources electrical and physical parameters.
Art.-No. 911-00171 | T123 | Details

This product is not available anymore.

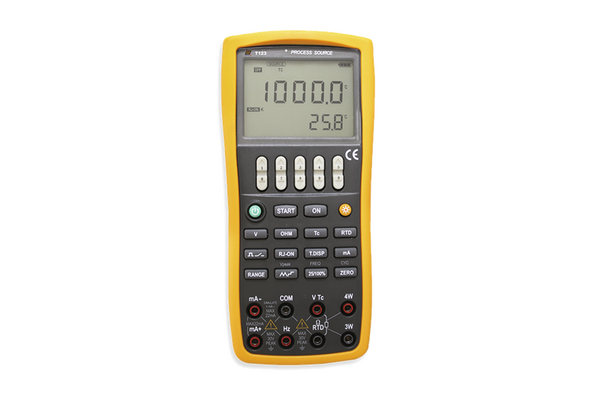

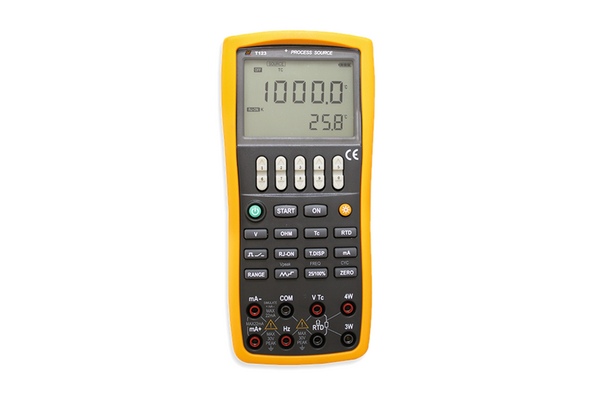

Process Calibrator
Source DC voltage, DC current, resistance, simulate Transmitter, TC, RTD, frequency, pulse and switch.
Big LCD can display the TC/RTD measurement value and mV/Ω corresponding simultaneously; mA and mA% simultaneously
TC source terminals and built-in lead connector of same temperature (RJ compensation with auto-reference joint point)
Manual step source and auto -step and sweeping –step source
Room temperature monitoring under any operation

More products in this product group:

Application	Only for sourcing and not for input voltages
Description	Handheld, battery-operated instrument that sources electrical and physical parameters.
PART DESCRIPTION	T123
Part No.	T123
Product Family	T123 Process Calibrator
Product Group	Calibrators

DC Current (+Accuracy)	20mA (0.02 + 0.02)
DC Voltage (+Accuracy)	100mV, 1000mV, 10V (0.02 + 0.01)
Frequency (+Accuracy)	100Hz, 1kHz, 10kHz, 100khz (2 counts)
Power Supply	1 x 9V Battery
Resistance (+Accuracy)	400Ω (0.02 + 0.02), 4kΩ(0.05 + 0.025), 40kΩ (0.1 + 0.1)
Temperature Measuring Range (+Accuracy)	-0ºC to 1767ºC (1.5º), -0ºC to 1767ºC (1.5ºC), 600ºC to 1820ºC (1.5ºC), -200ºC to 1000ºC (0.6ºC), -200ºC to 1372ºC (0.6ºC), -200ºC to 1200ºC (0.6ºC), -250ºC to 400ºC (0.6ºC), -200ºC to 1300ºC (1.0ºC)

GTIN-13 / EAN

6005242022586
