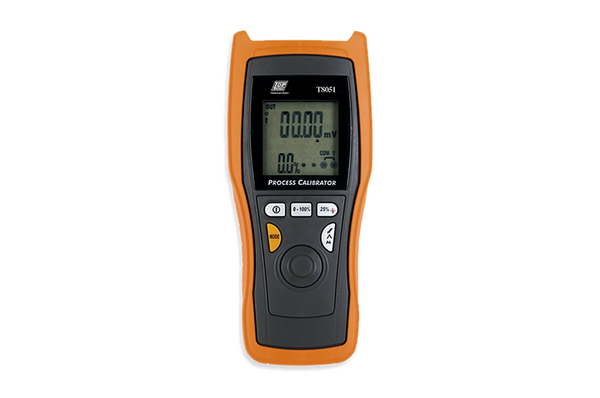

Digital Process Calibrator
Art.-No. 911-00172
| T8051
|
Copied
- Adjustment selector with high sensitivity
- Up to 3 available automatic ramp selection
- Loop current of external transducers measurement
- Simulation of an external transducer
- Backlit
- Auto Power OFF
Show more
Show less
More products in this product group:

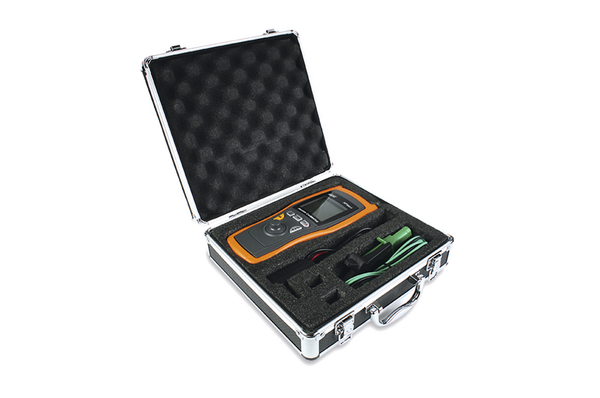

| Content Accessories | Test Leads, Alligator Clips, Protection Rubber Holster, Carrying Case |
| Description | Professional digital process calibrator designed to generate and measure DC voltage and DC current up to 10 V and 24 mA respectively. Under the current generation mode you can manually select between 0-20 mA and 4-20 mA as well as automatic ramps on output signal. An innovative adjustment knob permits a “top-easy” settings of the output current/voltage with 0.001 mA/V resolution. |
| PART DESCRIPTION | T8051 |
| Package Content packed in | box |
| Part No. | T8051 |
| Power Supply | Lithium-Ion Rechargeable Battery, External Adapter |
| Product Family | Loop Calibrator |
| Product Group | T8051 |
| Type | T8051 |
| Typical Application | T8051 is a professional digital process calibrator designed to generate and measure DC voltage and DC current up to 10 V and 24 mA respectively. Under the current generation mode you can manually select between 0-20 mA and 4-20 mA as well as automatic ramps on output signal. An innovative adjustment knob permits a “top-easy” settings of the output current/voltage with 0.001 mA/V resolution. |
| DC Current (+Accuracy) | 0.001mA - 24mA (± 0.02% Digit + 4 Digit) |
| DC Voltage (+Accuracy) | 0.01mV - 10V (± 0.02% Digit + 4 Digit) |
Feature
[DC Current (A)]
Parameter
[0.001mA - 24 mA]
Accuracy
[±0.02% + 4 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[0.01mV - 10 V]
Accuracy
[±0.02% + 4 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
DC Current (A) |
0.001mA - 24 mA |
±0.02% + 4 Digit(s) |
|
DC Voltage (V) |
0.01mV - 10 V |
±0.02% + 4 Digit(s) |
