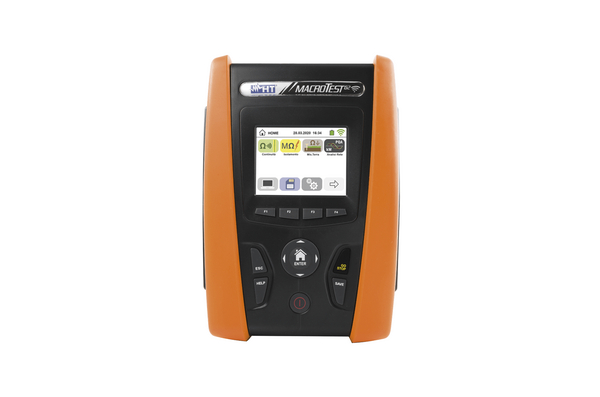

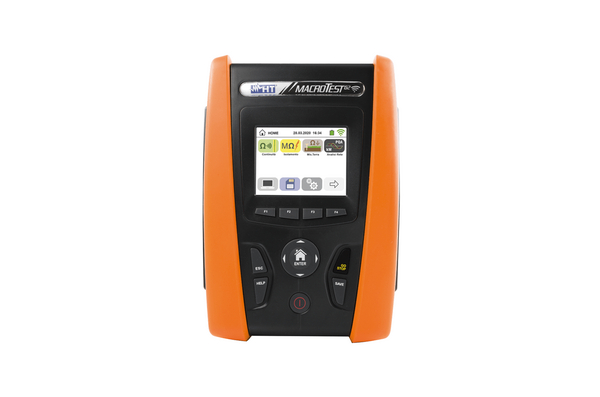

Multifunction Earth Tester
Art.-No. 911-02014 | MACROG2KIT-OG |

Copied
MACROG2KIT

    • Measures Voltage, Current, Active, Reactive, Apparent Power, Cosphi, Power Factor
    • Touchscreen colour display
    • Backlight
    • Auto Power OFF
    • Measured data saving via internal memory
    Colour Orange (OG)
    Description Multifunction earth resistance tester with touch-screen display and integrated Wi-Fi
    PART DESCRIPTION MACROG2KIT-OG
    Product Family CATIV 300V TRMS
    Product Group Multifunction Earth Tester
    Type MACROG2KIT
    AC Current (+Accuracy) 15 - 460V (±1.0% + 1 Digit)
    DC Voltage (+Accuracy) 50V/ 100V/ 250V/ 500V/ 1000V
    Frequency (+Accuracy) 42.5 - 69Hz (±1.0% + 2 Digit)
    Height (H) 75mm
    Length (L) 225mm
    Power Supply 6 x 1.5V AA batteries
    Resistance (+Accuracy) 100MΩ (50V)/ 200MΩ (100V)/ 500MΩ (250V)/ 1000MΩ (500V)/ 2000MΩ (1000V)
    Width (W) 165mm
    Operating Temperature 0 °C to +40 °C
    GTIN-13 / EAN 6005243027412
