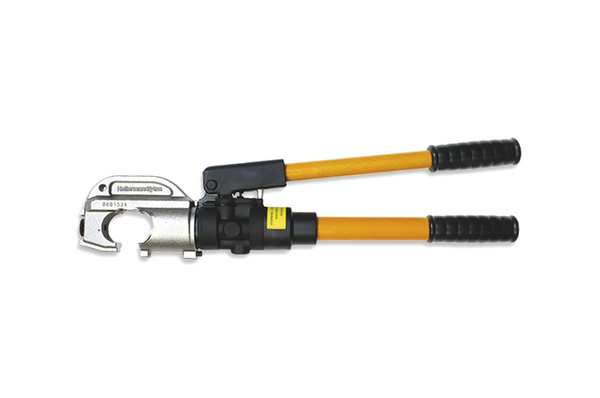

Hydraulic Crimp Tool 16-400mm² (Tool Only)


Art.-No. 911-00259

| HYCP400-MET/PL-MIX

 |

Copied
  • 12-Metric-Ton Crimping Force (700 Bar)
  • Automatic Low-to-High Pressure Conversion
  • 180° Rotating C-Head with 32 mm Opening
  • Built-In Pressure Relief Valve
  • Broad Die Compatibility (16–400 mm²)
  • Heavy-Duty Storage Case Included
  • Dies sold separately

Colour Metal (ML), Black (BK), Yellow (YE)
Description Hydraulic Crimp Tool 16-400mm² (Tool Only)
Material Metal (MET), Plastic (PL)
PART DESCRIPTION HYCP400-MET/PL-MIX
Package Content packed in pcs.
Part No. HYCP400
Product Family HYCP400
Product Group Crimp Tools - Hydraulic
Type HYCP400
Typical Application The HYCP400 is a heavy-duty hand hydraulic crimping tool engineered for high-force electrical terminations on copper and aluminum cables ranging from 16mm² to 400mm². It combines a two-stage hydraulic system with a 180-degree rotating C-head to deliver consistent 12-tonne crimps in demanding industrial and field environments.
Length (L) 630mm
Thickness (T) 630mm
Width (W) 174mm
Wire Size Range (mm²) 16-400mm²
