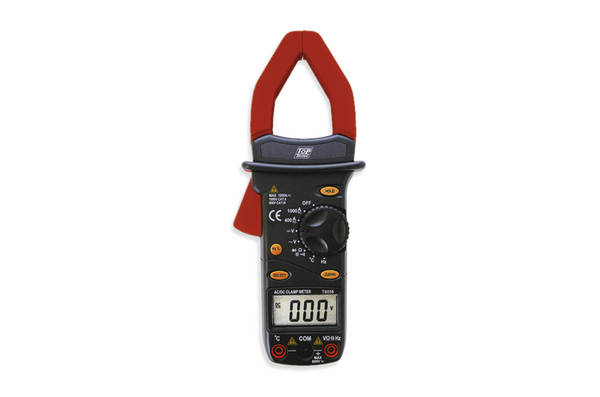

Digital Clamp Meters
Art.-No. 911-00045
| T8056-MET/PL-BK/RD
|
Copied
This product is not available anymore.
- Jaw Size 42 mm
- Duty cycle
- Diode
- Continuity
- Auto power off
- Relative zero
- Data hold
Show more
Show less
More products in this product group:
| Colour | Black (BK), Red (RD) |
| Content Accessories | Carry Pouch, Temp Probe |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | T8056-MET/PL-BK/RD |
| Package Content | 1pc. |
| Package Content packed in | box |
| Part No. | T8056 |
| Power Supply | 9 V Battery |
| Product Family | T8056 1000 A AC/DC |
| Product Group | Digital Clamp Meters |
| Type | T8056 |
| AC Current (+Accuracy) | 400 A (±3.0 % + 3 Digit), 1000 A (±3.0 % + 3 Digit) |
| AC Voltage (+Accuracy) | 4 V (±1.0 % + 10 Digit), 40 V (±1.0 % + 10 Digit), 400 V (±1.0 % + 10 Digit), 700 V (±1.0 % + 10 Digit) |
| DC Current (+Accuracy) | 400 A (±3.0 % + 3 Digit), 1000 A (±3.0 % + 3 Digit) |
| DC Voltage (+Accuracy) | 400 mV (±0.8 % + 3 Digit), 4 V (±0.8 % + 3 Digit), 40 V (±0.8 % + 3 Digit), 400 V (±0.8 % + 3 Digit), 1000 V (±0.8 % + 3 Digit) |
| Frequency (+Accuracy) | 100 Hz (±2.0 % + 1 Digit), 1 KHz (±2.0 % + 1 Digit), 10 KHz (±2.0 % + 1 Digit), 100 KHz (±2.0 % + 1 Digit), 400 KHz (±2.0 % + 1 Digit) |
| Height (H) | 43mm |
| Length (L) | 250mm |
| Temperature Measuring Range (+Accuracy) | - 40 °C - 750 °C |
| Width (W) | 99mm |
