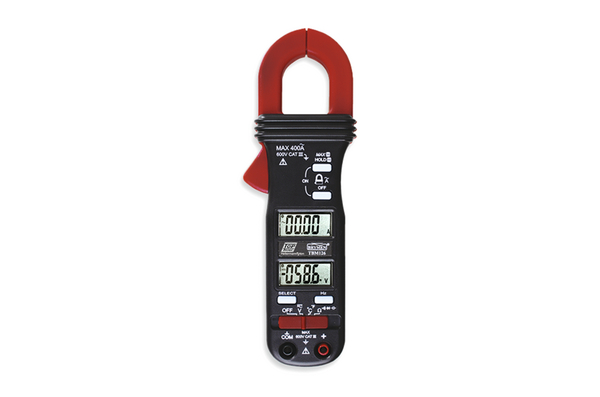

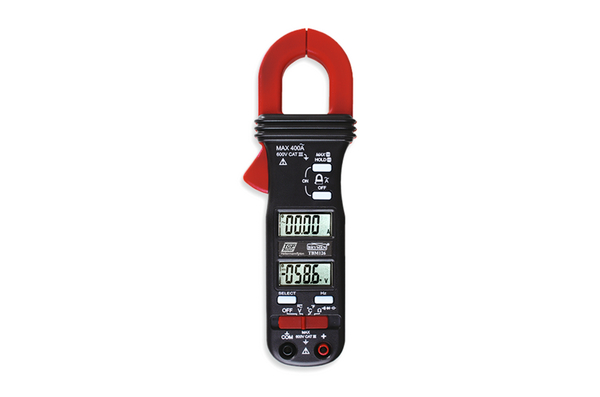

Digital Clamp Meters
Art.-No. 911-00030
| TBM126-MET/PL-BK/RD
|
Copied
This product is not available anymore.
- Jaw size 26 mm
- Large LCD display
- Diode
- Continuity
- Relative zero
- Data hold
Show more
Show less
More products in this product group:
| Colour | Black (BK), Red (RD) |
| Content Accessories | Carry Pouch, Temp Probe |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | TBM126-MET/PL-BK/RD |
| Package Content | 1pc. |
| Package Content packed in | box |
| Part No. | TBM126 |
| Power Supply | 3 V CR2032 Battery |
| Product Family | TBM126 600 V AC Dual Display |
| Product Group | Digital Clamp Meters |
| Type | TBM126 |
| AC Current (+Accuracy) | 40 A (±1.9 % + 5 Digit), 600 A (±1.9 % + 5 Digit) |
| AC Voltage (+Accuracy) | 4 V (±1.5 % + 5 Digit), 40 V (±1.5 % + 5 Digit), 400 V (±1.5 % + 5 Digit), 600 V (±1.2 % + 5 Digit) |
| Capacitance (+Accuracy) | 500 nF (±3.5 % + 6 Digit), 5 μF (±3.5 % + 6 Digit), 50 μF (±3.5 % + 6 Digit), 500 μF (±3.5 % + 6 Digit), 3000 μF (±3.5 % + 6 Digit) |
| DC Voltage (+Accuracy) | 400 mV (±1.0 % + 4 Digit), 4 V (±1.0 % + 4 Digit), 40 V (±1.0 % + 4 Digit), 400 V (±1.0 % + 4 Digit), 600 V (±1.0 % + 4 Digit) |
| Frequency (+Accuracy) | 5 Hz - 100 KHz (±0.5 % + 4 Digit) |
| Height (H) | 32mm |
| Length (L) | 190mm |
| Temperature Measuring Range (+Accuracy) | - 20 °C - 300 °C |
| Width (W) | 63mm |
