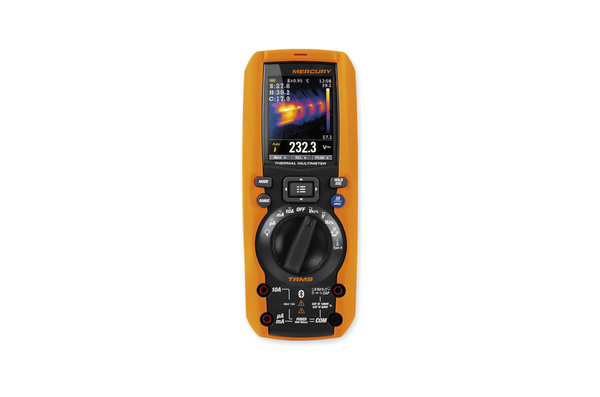

Mercury - Built in infrared Camera
Art.-No. 911-01942 | MERCURY-MET/PL-BK/OG |

TFT high-contrast colour display (320x240pxl)
6000 measuring spots
Data logger function and real-time display of graphs of measured data
Measurement of frequency and duty cycle
Resistance and buzzer for continuity test
Diode test
Temperature measurement by means of external K-type probe
Measures AC TRMS, DC, AC+DC current when connected to either a rigid or flexible clamp transducer
MAX/MIN/PEAK/HOLD/REL functions
Voltage and current trends logged with selectable sampling rate: from 1s to 15min
Built-in white-light torch

More products in this product group:

Application	The MERCURY offers safe reliable current and voltage measurements in a photovoltaic string using a clamp transducer, immediately detecting any problem in the system.
Colour	Orange (OG), Black (BK)
Content Accessories	Test leads, Micro SD card, (8GB Card) K-type Temperature Probe - Puch
Description	The MERCURY is a single device that combines the functionality normally performed by multimeters and IR cameras. The built-in IR camera can quickly detect hot spots caused by electrical problems or mafunctions and ensure problems are resolved. In addition with Bluetooth connectivity, the instrument can be set to measure while the user moves away from possibly dangerous areas. The MERCURY is portable, compact and has an IP65 rating.
Digits in display	6000
Material	Metal (MET), Plastic (PL)
PART DESCRIPTION	MERCURY-MET/PL-BK/OG
Package Content	1
Part No.	MERCURY
Power Supply	1x 7.2V Li-ION Rechargeable Battery (1500mAh)
Product Family	MERCURY
Product Group	Digital Multimeters
Type	MERCURY

AC Current (+Accuracy)	600.0μA, 6000μA, 60.00mA, 600.0mA (±(1.2%rdg+5dgt)), 10.00A (±(1.5%rdg+5dgt))
AC Voltage (+Accuracy)	6.000V, 60.00V, 600.0V, 1000V (±(2.4%rdg+20dgt))
Capacitance (+Accuracy)	60.00nF ±(1.5%rdg + 20dgt), 600.0nF ±(1.2%rdg + 8dgt), 6.000μF ±(1.5%rdg + 8dgt), 60.00μF ±(1.2%rdg + 8dgt), 6000uF ±(2.5%rdg + 20dgt)
DC Current (+Accuracy)	600.0μA, 6000μA, 60.00mA (±(0.9%rdg+5dgt)), 600.0mA (±(0.9%rdg+8dgt)), 10.00A (±(1.5%rdg+8dgt))
DC Voltage (+Accuracy)	600.0mV, 6.000V, 60.00V (±(0.09%rdg+5dgt)), 600.0V, 1000V (±(0.2%rdg+5dgt))
Height (H)	55mm
Length (L)	185mm
Temperature Measuring Range (+Accuracy)	-40°C - 600°C, 600°C - 1000°C ±(1.5%rdg+3°C)
Width (W)	75mm

Feature

[AC Voltage (V)]

Parameter

[6/ 60/ 600/ 1000 V]

Accuracy

[±0.8 % + 5 Digit(s)]

Feature

[Capacitance (F)]

Parameter

[60nF/ 600nF/ 6µF/ 60µF/ 600µF/ 6000 µF]

Accuracy

[±2.5% + 20 Digit(s)]

Feature

[DC Current (A)]

Parameter

[600µF/ 6000µA/ 60 mA, 600 mA, 10 A]

Accuracy

[±0.9 % + 5 Digit(s), ±0.9 % + 8 Digit(s), ±1.5 % + 8 Digit(s)]

Feature

[DC Voltage (V)]

Parameter

[600 mV/ 6/ 60 V, 600/ 1000 V]

Accuracy

[±0.09 % + 5 Digit(s), ±0.2 % + 5 Digit(s)]

Feature

[Display]

Accuracy

[6 000 Counts]

Feature

[Frequency (Hz)]

Parameter

[60/ 600/ 6 kHz/ 60 kHz/ 600 kHz/ 1MHz/ 100MHz]

Accuracy

[±0.9 % + 5 Digit(s)]

Feature

[Resistance (Ω)]

Parameter

[600/ 6 kΩ/ 60 kΩ/ 600 kΩ/ 6 MΩ/ 60 MΩ]

Accuracy

[±5.0 % + 20 Digit(s)]
