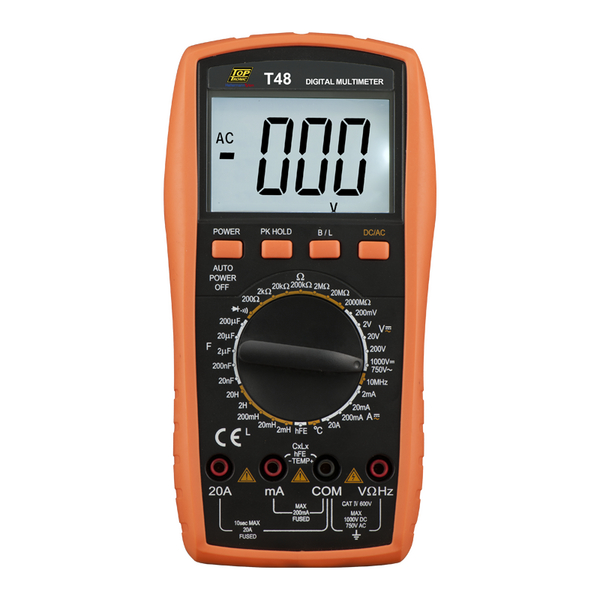

Measures DCV, ACV, DCA, ACA, resistance, capacitance, inductance, diode, triode, continuity, temperature and frequency, as well as hold peak value.
Art.-No. 911-00004
| T48-MET/PL-GY/OG
|
Copied
- Capacitance
- Inductance
- Frequency
- hFE Function
- Backlight
- Temperature
Show more
Show less
More products in this product group:
| Application | The Toptronic T48 is a versatile digital multimeter designed for electrical maintenance and troubleshooting. It is ideal for testing continuity, diodes and transistor hFE, making it suitable for automotive, industrial and household electrical applications. |
| CAT-Rating | CATIV 600V |
| Colour | Dark Grey (DKGY), Orange (OG) |
| Content Accessories | Temp Probe TBMTEMPPROBE, Test Leads |
| Description | Multimeter Electronic Digital |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | T48-MET/PL-GY/OG |
| Package Content packed in | pack |
| Part No. | T48 |
| Power Supply | 1 X 9V battery |
| Product Family | T48 |
| Product Group | Digital Multimeter |
| Type | T48 |
| Typical Application | The Toptronic T48 is a versatile digital multimeter designed for electrical maintenance and troubleshooting. It is ideal for testing continuity, diodes and transistor hFE, making it suitable for automotive, industrial and household electrical applications. |
| Height (H) | 35mm |
| Length (L) | 189mm |
| Temperature Measuring Range (+Accuracy) | -20ºC to 1000ºC (±1.0% + 4 Digit) |
| Width (W) | 97mm |
Feature
[AC Current (A)]
Parameter
[2 mA/ 20 mA/ 200 mA/ 20 A]
Accuracy
[±1.0 % + 5 Digit(s)]
Feature
[AC Voltage (V)]
Parameter
[200 mV/ 2/ 20/ 200/ 750 V]
Accuracy
[±0.8 % + 5 Digit(s)]
Feature
[Capacitance (F)]
Parameter
[20nF/ 200nF/ 2µF/ 20µF/ 200 µF]
Accuracy
[±2.5 % + 20 Digit(s)]
Feature
[DC Current (A)]
Parameter
[2 mA/ 20 mA/ 200 mA/ 20 A]
Accuracy
[±0.8 % + 3 Digit(s)]
Feature
[DC Voltage (V)]
Parameter
[200 mV/ 2/ 20/ 200/ 1000 V]
Accuracy
[±0.5 % + 3 Digit(s)]
Feature
[Display]
Parameter
[3 Digit(s)]
Accuracy
[1 999 Counts]
Feature
[Frequency (Hz)]
Parameter
[20K/ 200K/ 2000/ 10MHz]
Accuracy
[±0.5 % + 4 Digit(s)]
Feature
[Resistance (Ω)]
Parameter
[200/ 2 kΩ/ 200 kΩ/ 2M/ 2000 MΩ]
Accuracy
[±0.8 % + 3 Digit(s)]
| Feature | Parameter | Accuracy |
|---|---|---|
|
AC Current (A) |
2 mA/ 20 mA/ 200 mA/ 20 A |
±1.0 % + 5 Digit(s) |
|
AC Voltage (V) |
200 mV/ 2/ 20/ 200/ 750 V |
±0.8 % + 5 Digit(s) |
|
Capacitance (F) |
20nF/ 200nF/ 2µF/ 20µF/ 200 µF |
±2.5 % + 20 Digit(s) |
|
DC Current (A) |
2 mA/ 20 mA/ 200 mA/ 20 A |
±0.8 % + 3 Digit(s) |
|
DC Voltage (V) |
200 mV/ 2/ 20/ 200/ 1000 V |
±0.5 % + 3 Digit(s) |
|
Display |
3 Digit(s) |
1 999 Counts |
|
Frequency (Hz) |
20K/ 200K/ 2000/ 10MHz |
±0.5 % + 4 Digit(s) |
|
Resistance (Ω) |
200/ 2 kΩ/ 200 kΩ/ 2M/ 2000 MΩ |
±0.8 % + 3 Digit(s) |
